IRF7341PBF ,MOSFET, MOSFET Transistor - Infineon

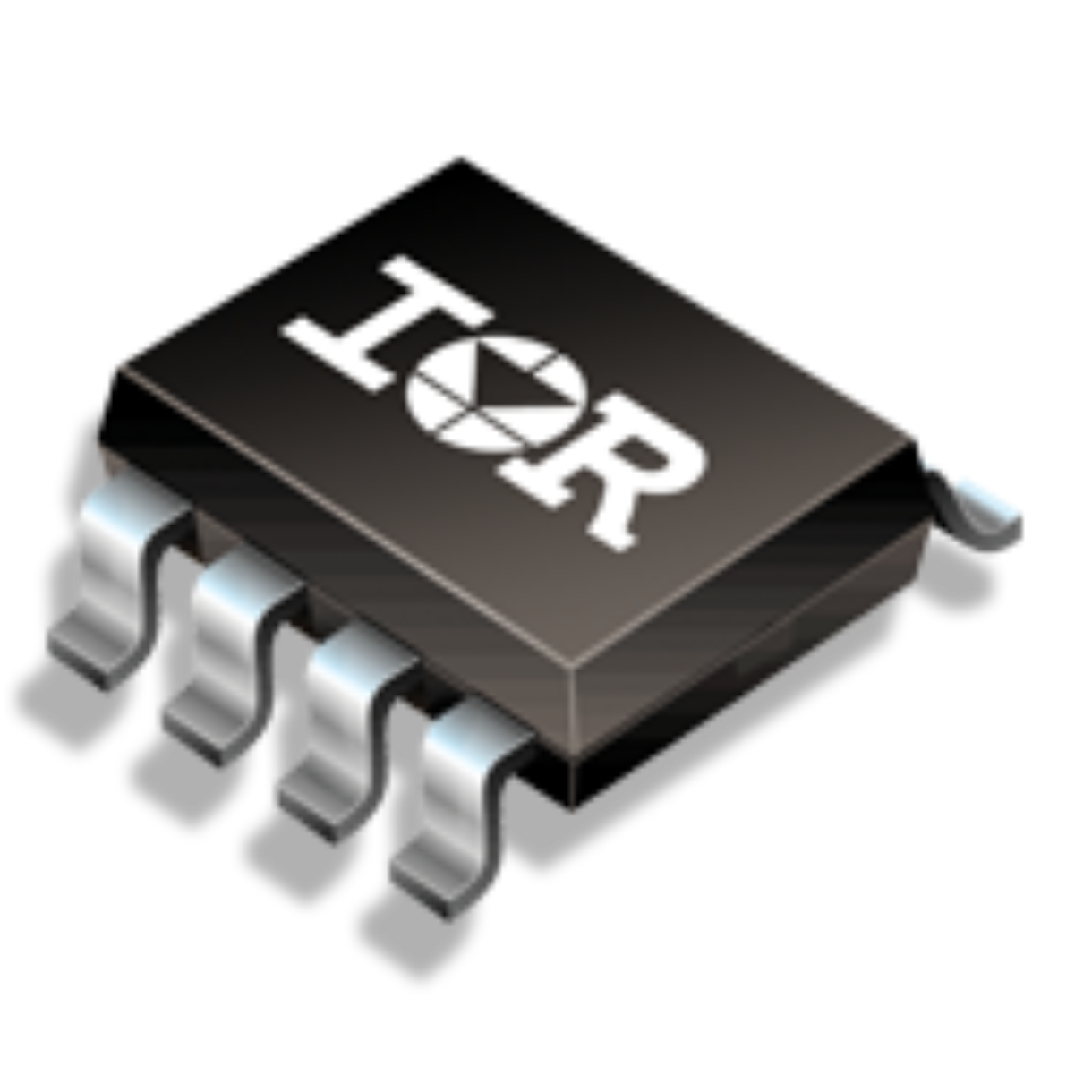

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

146 points

Part No

IRF7341PBF
Manufacturer

Infineon
ChipWorker Part#

CW5410953
Category

MOSFET, MOSFET Transistor
Package

SOIC-8
Description

SOIC N-CH 55V 4.7A
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 0.21

Buy IRF7341PBF

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

IRF7341PBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

IRF7341PBF Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	IRF7341PBF
Manufacturer	Infineon
ChipWorker Part#	CW5410953
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Power Rating	2 W
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.05 Ω
Polarity	N-CH
Power Dissipation	2 W
Threshold Voltage	1 V
Drain to Source Voltage (Vds)	55 V
Continuous Drain Current (Ids)	4.7A
Rise Time	3.2 ns
Input Capacitance (Ciss)	740pF @25V(Vds)
Input Power (Max)	2 W
Fall Time	13 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2 W
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Material	Silicon
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

Product Description

The IRF7341PBF is a 55V dual N-channel HEXFET® Power MOSFET with extremely low on-resistance per silicon area and fast switching performance using advanced planar technology.
Surface mount
Dynamic dV/dt rating

expand all
