IRLML6401TRPBF - Infineon

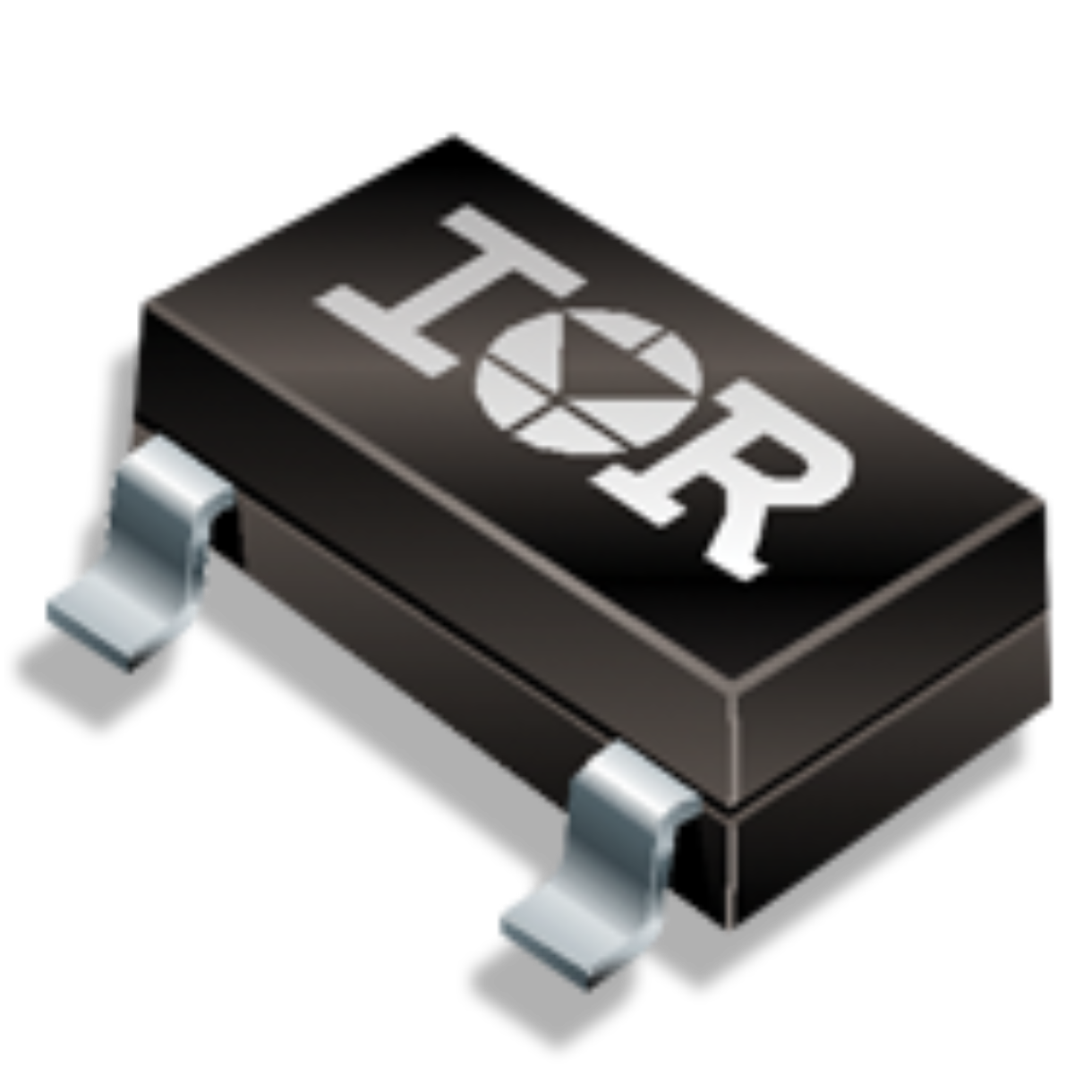

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoIRLML6401TRPBF
-
ManufacturerInfineon
-
ChipWorker Part#CW173808
-
CategoryMOSFET, MOSFET Transistor
-
RoHSLead free / RoHS Compliant
-
DescriptionSOT-23P-CH 12V 4.3A
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
IRLML6401TRPBF Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
IRLML6401TRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | IRLML6401TRPBF |
| Manufacturer | Infineon |
| ChipWorker Part# | CW173808 |
| Category | MOSFET, MOSFET Transistor |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Power Rating | 1.3 W |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.05 Ω |
| Polarity | P-Channel |
| Power Dissipation | 1.3 W |
| Threshold Voltage | 550 mV |
| Input Capacitance | 830 pF |
| Drain to Source Voltage (Vds) | 12 V |
| Continuous Drain Current (Ids) | 4.3A |
| Rise Time | 32 ns |
| Input Capacitance (Ciss) | 830pF @10V(Vds) |
| Input Power (Max) | 1.3 W |
| Fall Time | 210 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 1.3W (Ta) |
| expand all | |
| Size-Length | 3.04 mm |
| Size-Width | 1.4 mm |
| Size-Height | 1.02 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
Product Description
- The IRLML6401TRPBF is a -12V single P-channel HEXFET Power MOSFET, compatible with existing surface mount techniques. This MOSFET features increased reliability and easier manufacturing.
- Halogen-free
- MSL1, Industrial qualification
- Multi-vendor compatibility
- Environmentally-friendly
- Trench MOSFET technology
- ±8V Gate to source voltage
- 0.01W/°C Linear derating factor
