IRF9952TRPBF - Infineon

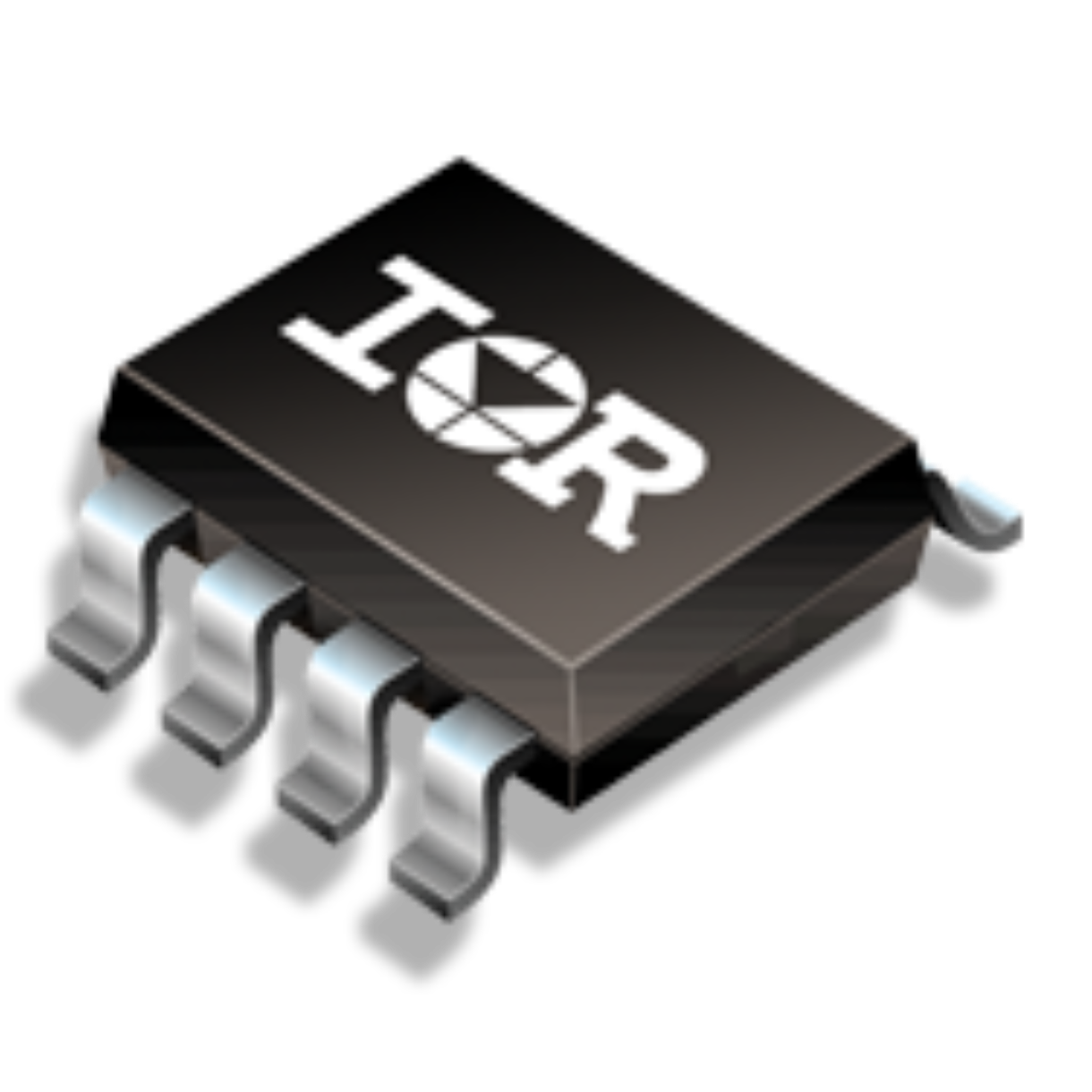

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRF9952TRPBF
Manufacturer

Infineon
ChipWorker Part#

CW3568688
Category

MOSFET, MOSFET Transistor
RoHS

Lead free / RoHS Compliant
Description

SOIC N+P 30V 3.5A/2.3A
Documentation

Datasheet

IRF9952TRPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRF9952TRPBF Specifications

Attribute	Attribute Value

Part Number	IRF9952TRPBF
Manufacturer	Infineon
ChipWorker Part#	CW3568688
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Power Rating	2 W
Number of Channels	2 Channel
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.08 Ω
Polarity	N-Channel, P-Channel
Power Dissipation	2 W
Threshold Voltage	1 V
Input Capacitance	190 pF
Drain to Source Voltage (Vds)	30 V
Breakdown Voltage (Drain to Source)	30 V
Continuous Drain Current (Ids)	3.5A/2.3A
Input Capacitance (Ciss)	190pF @15V(Vds)
Input Power (Max)	2 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2 W
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

Benefits:
RoHS Compliant
Low RDS(on)
Dynamic dv/dt Rating
Fast Switching
Dual N and P-Channel MOSFET
