IRFBC30APBF ,MOSFET, MOSFET Transistor - VISHAY

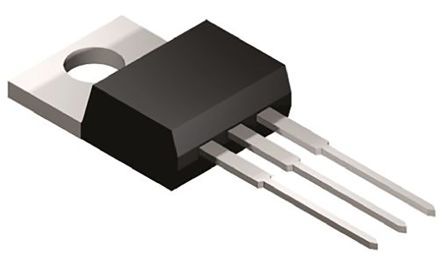

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

113 points

Part No

IRFBC30APBF
Manufacturer

VISHAY
ChipWorker Part#

CW33513926
Category

MOSFET, MOSFET Transistor
Package

TO-220-3
Description

TO-220-3 N-CH 600V 3.6A 2.2Ω
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 2.3

Buy IRFBC30APBF

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

IRFBC30APBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

IRFBC30APBF Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	IRFBC30APBF
Manufacturer	VISHAY
ChipWorker Part#	CW33513926
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	2.2 Ω
Polarity	N-Channel
Power Dissipation	74 W
Threshold Voltage	4.5 V
Drain to Source Voltage (Vds)	600 V
Continuous Drain Current (Ids)	3.60 A
Input Capacitance (Ciss)	510pF @25V(Vds)
Input Power (Max)	74 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	74 W
	expand all
Size-Length	10.41 mm
Size-Width	4.7 mm
Size-Height	9.01 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
Minimum Packing Quantity	50
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

IRF7822PBF

International Rectifier

Product Description

The IRFBC30APBF is a 600V N-channel enhancement-mode Power MOSFET with single configuration. It is suitable for SMPS, uninterruptible power supply and high speed power switching applications.
Low gate charge Qg results in simple drive requirement
Improved gate, avalanche and dynamic dV/dt ruggedness
Fully characterized capacitance and avalanche voltage and current
Effective COSS specified
