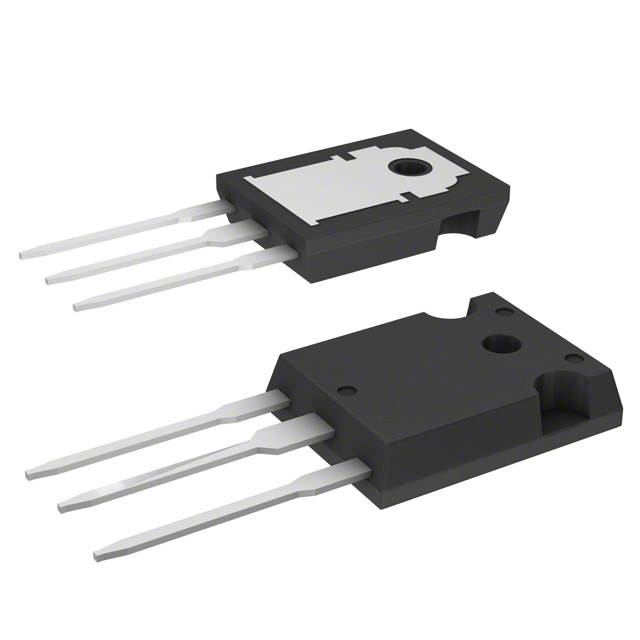

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STPS2045CT
Manufacturer

ST Microelectronics
ChipWorker Part#

CW100557
Category

Schottky Diode
Package

TO-220-3
Description

Diode Schottky 45V 20A 3Pin(3+Tab) TO-220AB Tube
Documentation

Datasheet

STPS2045CT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

STPS2045CT Specifications

Attribute	Attribute Value

Part Number	STPS2045CT
Manufacturer	ST Microelectronics
ChipWorker Part#	CW100557
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	45.0 V
Current Rating	20 A
Number of Positions	3 Position
Forward Voltage	0.57 V
Thermal Resistance	1.4 ℃/W
Forward Current	20 A
Max Forward Surge Current (Ifsm)	180 A
Maximum Forward Voltage (Max)	570mV @10A
Forward Current (Max)	10 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
	expand all
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.15 mm
Weight	0.004535924 kg
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
HK STC License	NLR

Product Description

The STPS2045CT is a Power Schottky Rectifier features very small conduction losses, negligible switching losses and extremely fast switching. This dual centre tap Schottky rectifier is suitable for high frequency DC to DC converters. This device is especially intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.
