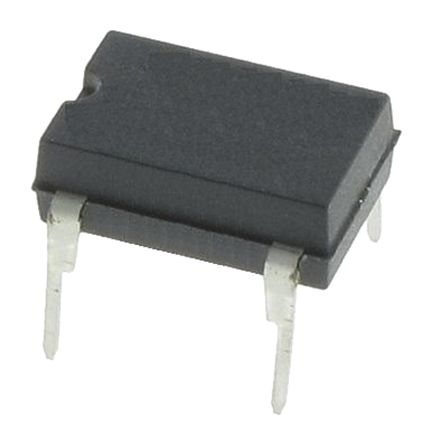

IRFD9024PBF ,MOSFET, MOSFET Transistor - VISHAY

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

110 points

Part No

IRFD9024PBF
Manufacturer

VISHAY
ChipWorker Part#

CW16180565
Category

MOSFET, MOSFET Transistor
Package

DIP-4
Description

HVMDIP-4P-CH 60V 1.6A 280mΩ
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 0.63

Buy IRFD9024PBF

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

IRFD9024PBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

IRFD9024PBF Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	IRFD9024PBF
Manufacturer	VISHAY
ChipWorker Part#	CW16180565
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	DIP-4
Voltage Rating (DC)	-60.0 V
Current Rating	-1.60 A
Power Rating	1.3 W
Number of Positions	4 Position
Drain to Source Resistance (on) (Rds)	0.28 Ω
Polarity	P-Channel
Power Dissipation	1.3 W
Drain to Source Voltage (Vds)	60 V
Breakdown Voltage (Drain to Source)	-60.0 V
Continuous Drain Current (Ids)	-1.60 A
Rise Time	68 ns
Input Capacitance (Ciss)	570pF @25V(Vds)
Input Power (Max)	1.3 W
Fall Time	29 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.3 W
	expand all
Size-Length	5 mm
Size-Width	6.29 mm
Size-Height	3.37 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
Minimum Packing Quantity	2500
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Similar & Replacement Parts

Product Description

The IRFD9024PBF is a -60V P-channel Power MOSFET, third generation HEXFET® power MOSFET provides the designer with the best combination of fast switching, ruggedized device design and low on-resistance. The package is a machine-insertable case style which can be stacked in multiple combinations on standard 0.1-inch pin centres. The dual drain serves as a thermal link to the mounting surface for power dissipation levels up to 1W.
Dynamic dV/dt rating
Repetitive avalanche rated
175°C Operating temperature
Easy to parallel
Simple drive requirement
For automatic insertion
End stackable
