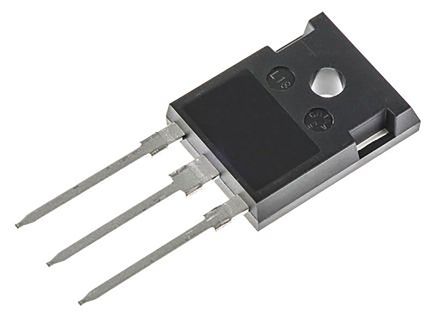

IRFP23N50LPBF - VISHAY

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRFP23N50LPBF
Manufacturer

VISHAY
ChipWorker Part#

CW12481886
Category

MOSFET, MOSFET Transistor
Package

TO-247-3
Description

Trans MOSFET N-CH 500V 23A 3Pin(3+Tab) TO-247AC
Documentation

Datasheet

IRFP23N50LPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRFP23N50LPBF Specifications

Attribute	Attribute Value

Part Number	IRFP23N50LPBF
Manufacturer	VISHAY
ChipWorker Part#	CW12481886
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.235 Ω
Polarity	N-Channel
Power Dissipation	370 W
Threshold Voltage	5 V
Drain to Source Voltage (Vds)	500 V
Continuous Drain Current (Ids)	23.0 A
Rise Time	94 ns
Input Capacitance (Ciss)	3600pF @25V(Vds)
Fall Time	45 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	370W (Tc)
	expand all
Size-Length	15.87 mm
Size-Width	5.31 mm
Size-Height	20.7 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The IRFP23N50LPBF is a 500V N-channel SMPS MOSFET with low gate charge Qg results in simple drive requirement. Superfast body diode eliminates the need for external diodes in ZVS applications. Suitable for use in zero voltage switching SMPS, telecom and server power supplies, uninterruptible power supplies and motor control applications.
Enhanced dv/dt capabilities offer improved ruggedness
Higher gate voltage threshold offers improved noise immunity
150°C Operating temperature
