IRFPS43N50KPBF - VISHAY

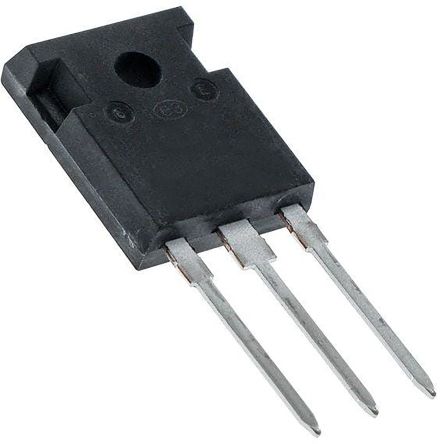

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRFPS43N50KPBF
Manufacturer

VISHAY
ChipWorker Part#

CW54456646
Category

MOSFET, MOSFET Transistor
Package

TO-247-3
Description

Single N-Channel 500V 0.078Ω Through Hole Power Mosfet - SUPER-247
Documentation

Datasheet

IRFPS43N50KPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRFPS43N50KPBF Specifications

Attribute	Attribute Value

Part Number	IRFPS43N50KPBF
Manufacturer	VISHAY
ChipWorker Part#	CW54456646
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	500 V
Current Rating	47.0 A
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.078 Ω
Polarity	N-Channel
Power Dissipation	540 W
Threshold Voltage	5 V
Drain to Source Voltage (Vds)	500 V
Breakdown Voltage (Drain to Source)	500 V
Continuous Drain Current (Ids)	47.0 A
Rise Time	140 ns
Input Capacitance (Ciss)	8310pF @25V(Vds)
Input Power (Max)	540 W
Fall Time	74 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	540000 mW
	expand all
Size-Length	16.1 mm
Size-Width	5.3 mm
Size-Height	20.8 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The IRFPS43N50KPBF is a N-channel enhancement-mode Power MOSFET with low gate charge.
Simple drive requirements
Improved gate, avalanche and dynamic dV/dt ruggedness
Fully characterized capacitance and avalanche voltage and current
Low RDS (ON)
