IRFR2407TRPBF - Infineon

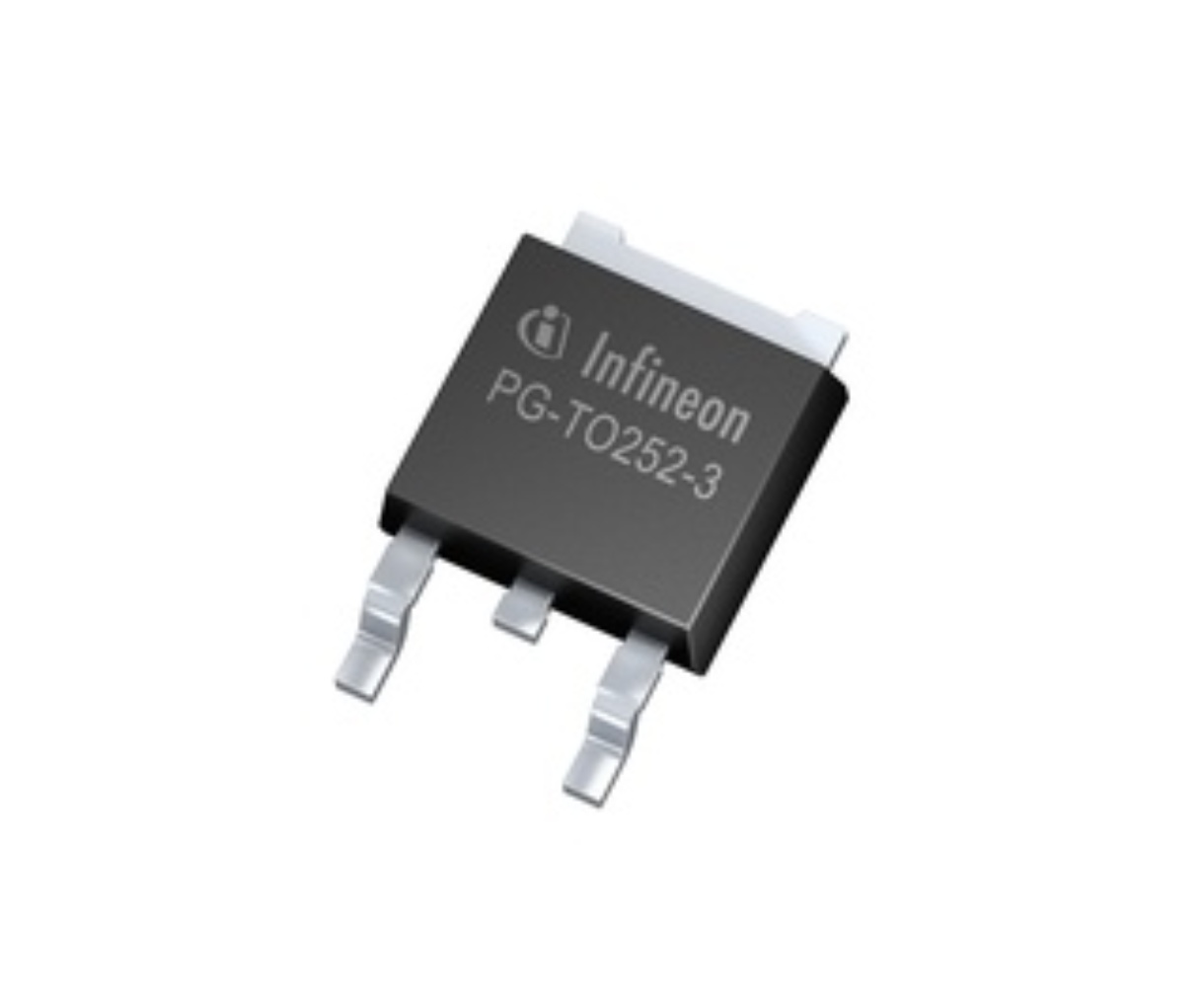

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRFR2407TRPBF
Manufacturer

Infineon
ChipWorker Part#

CW10179469
Category

MOSFET, MOSFET Transistor
Package

TO-252-3
Description

DPAK N-CH 75V 42A
Documentation

Datasheet

IRFR2407TRPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRFR2407TRPBF Specifications

Attribute	Attribute Value

Part Number	IRFR2407TRPBF
Manufacturer	Infineon
ChipWorker Part#	CW10179469
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Power Rating	110 W
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.0218 Ω
Polarity	N-Channel
Power Dissipation	110 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	75 V
Continuous Drain Current (Ids)	42A
Rise Time	90 ns
Input Capacitance (Ciss)	2400pF @25V(Vds)
Input Power (Max)	110 W
Fall Time	66 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	110W (Tc)
	expand all
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.39 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Benefits:
RoHS Compliant
Low RDS(on)
Industry-leading quality
Dynamic dv/dt Rating
Fast Switching
Fully Avalanche Rated
175°C Operating Temperature
