IRFR320TRPBF - VISHAY

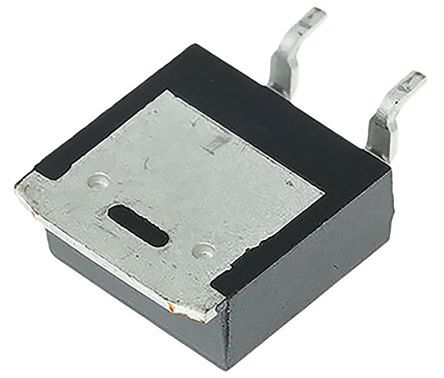

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRFR320TRPBF
Manufacturer

VISHAY
ChipWorker Part#

CW5470355
Category

MOSFET, MOSFET Transistor
Description

TO-252-3 N-CH 400V 3.1A 1.8Ω
Documentation

Datasheet

IRFR320TRPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRFR320TRPBF Specifications

Attribute	Attribute Value

Part Number	IRFR320TRPBF
Manufacturer	VISHAY
ChipWorker Part#	CW5470355
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	1.8 Ω
Polarity	N-Channel
Power Dissipation	42 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	400 V
Continuous Drain Current (Ids)	3.10 A
Rise Time	14 ns
Input Capacitance (Ciss)	350pF @25V(Vds)
Input Power (Max)	2.5 W
Fall Time	13 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	42 W
	expand all
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.38 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	2000
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free

Product Description

The IRFR320TRPBF is a third generation N-channel enhancement-mode Power MOSFET comes with the best combination of fast switching, ruggedized device design and low ON-resistance. The DPAK is designed for surface-mount using vapour phase, infrared or wave soldering techniques. Power dissipation levels up to 1.5W are possible in typical surface-mount applications.
