IRG4BC20KDPBF - Infineon

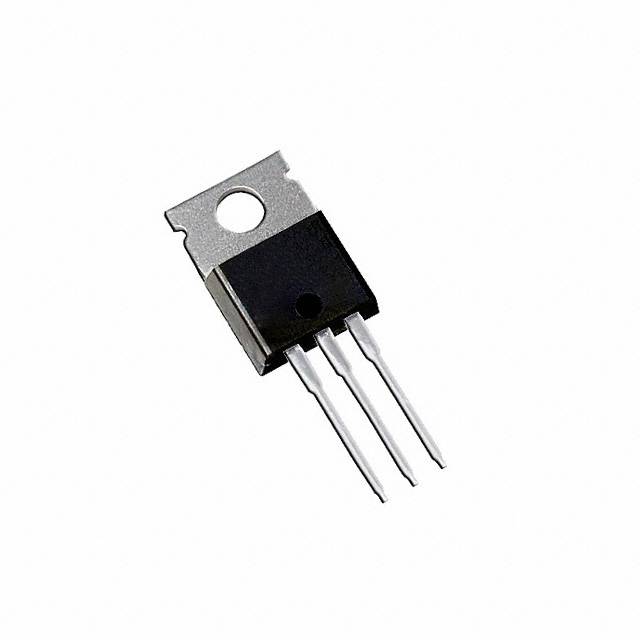

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoIRG4BC20KDPBF
-
ManufacturerInfineon
-
ChipWorker Part#CW6314466
-
CategoryIGBT Transistor, IGBT Module
-
PackageTO-220-3
-
DescriptionTrans IGBT Chip N-CH 600V 16A 60000mW 3Pin(3+Tab) TO-220AB Tube
-
DocumentationDatasheet
