IRG4PC30SPBF - Infineon

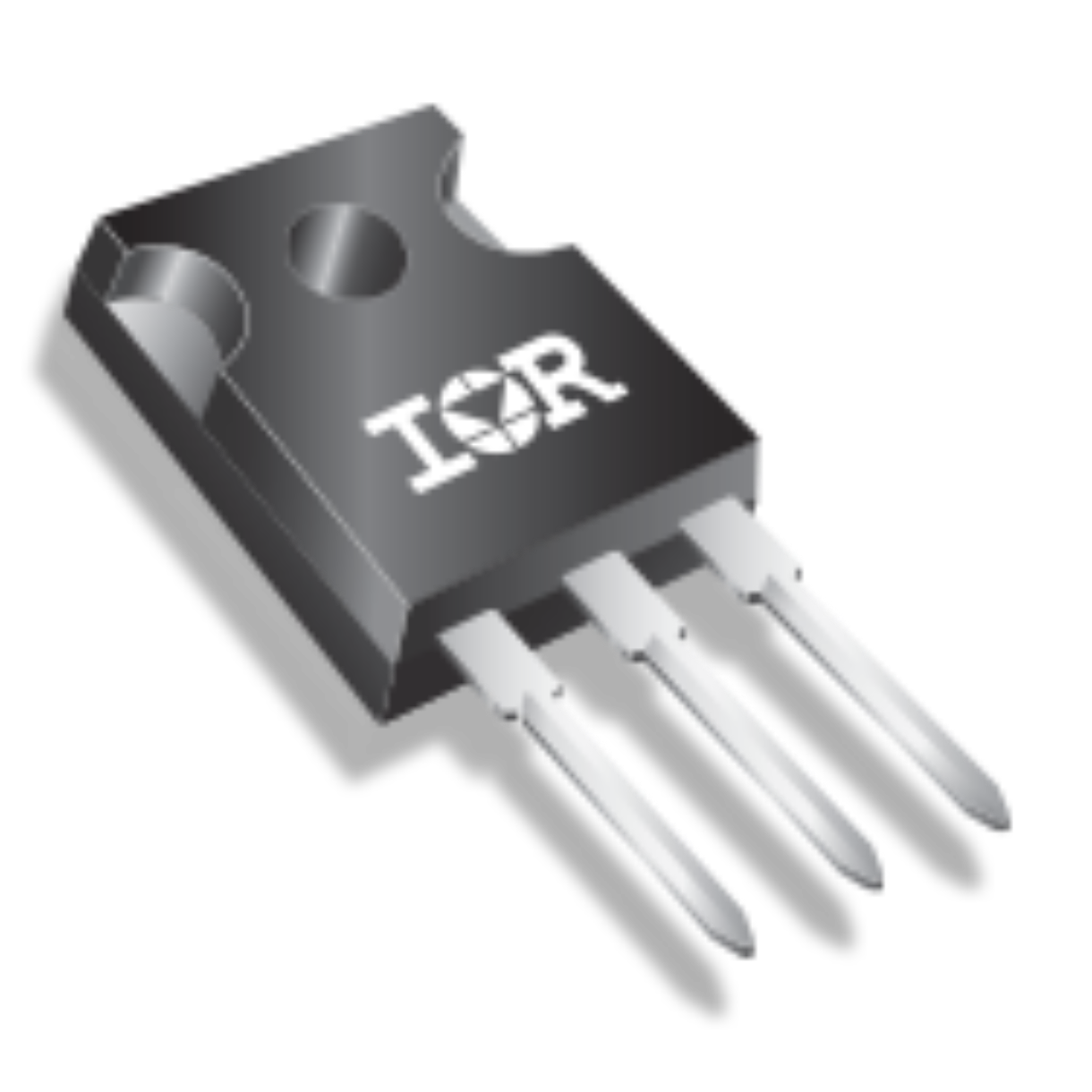

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRG4PC30SPBF
Manufacturer

Infineon
ChipWorker Part#

CW12530813
Category

IGBT Transistor, IGBT Module
Package

TO-247-3
Description

Trans IGBT Chip N-CH 600V 34A 100000mW 3Pin(3+Tab) TO-247AC Tube
Documentation

Datasheet

IRG4PC30SPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRG4PC30SPBF Specifications

Attribute	Attribute Value

Part Number	IRG4PC30SPBF
Manufacturer	Infineon
ChipWorker Part#	CW12530813
Category	IGBT Transistor, IGBT Module
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Power Rating	100 W
Power Dissipation	100 W
Breakdown Voltage (Collector to Emitter)	600 V
Input Power (Max)	100 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	100000 mW
	expand all
Size-Length	15.87 mm
Size-Width	5.31 mm
Size-Height	20.7 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

IRG4PC30SPbF Series 600 V 34 A Flange Mount Standard Speed IGBT - TO-247AC
