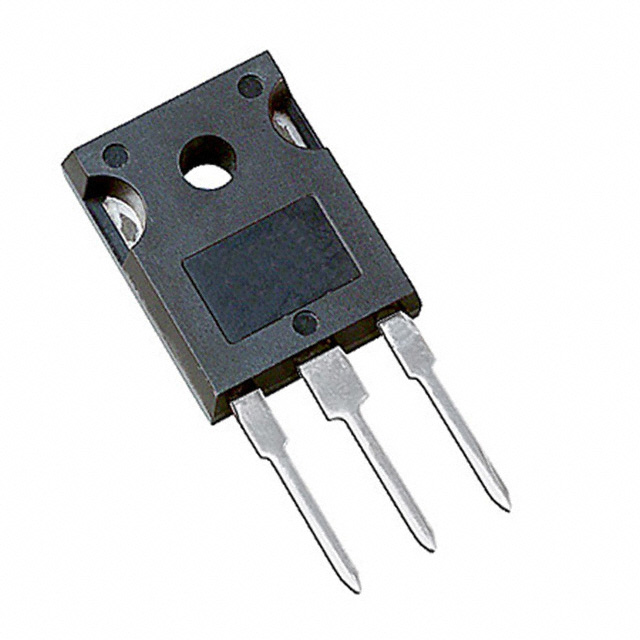

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRGP4066DPBF
Manufacturer

Infineon
ChipWorker Part#

CW4122945
Category

IGBT Transistor, IGBT Module
Package

TO-247-3
Description

Trans IGBT Chip N-CH 600V 140A 454000mW 3Pin(3+Tab) TO-247AC Tube
Documentation

Datasheet

IRGP4066DPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRGP4066DPBF Specifications

Attribute	Attribute Value

Part Number	IRGP4066DPBF
Manufacturer	Infineon
ChipWorker Part#	CW4122945
Category	IGBT Transistor, IGBT Module
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Power Rating	454 W
Number of Positions	3 Position
Power Dissipation	454 W
Input Capacitance	4440 pF
Breakdown Voltage (Collector to Emitter)	600 V
Thermal Resistance	40 ℃/W
Reverse recovery time	155 ns
Input Power (Max)	454 W
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	34 W
	expand all
Size-Length	15.87 mm
Size-Width	5.31 mm
Size-Height	20.7 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The IRGP4066DPBF is an Insulated Gate Bipolar Transistor with ultrafast soft recovery diode. It features rugged transient performance for increased reliability and excellent current sharing in parallel operation. It is suitable for a wide range of switching frequencies due to low VCE (ON) and low switching losses.
Low VCE (ON) Trench IGBT technology
Low switching losses
Square RBSOA
100% of Parts tested for ILM
Positive VCE (ON) temperature coefficient
Tight parameter distribution
High efficiency in a wide range of applications
5µs Short-circuit SOA
