IRMCF341 - Infineon

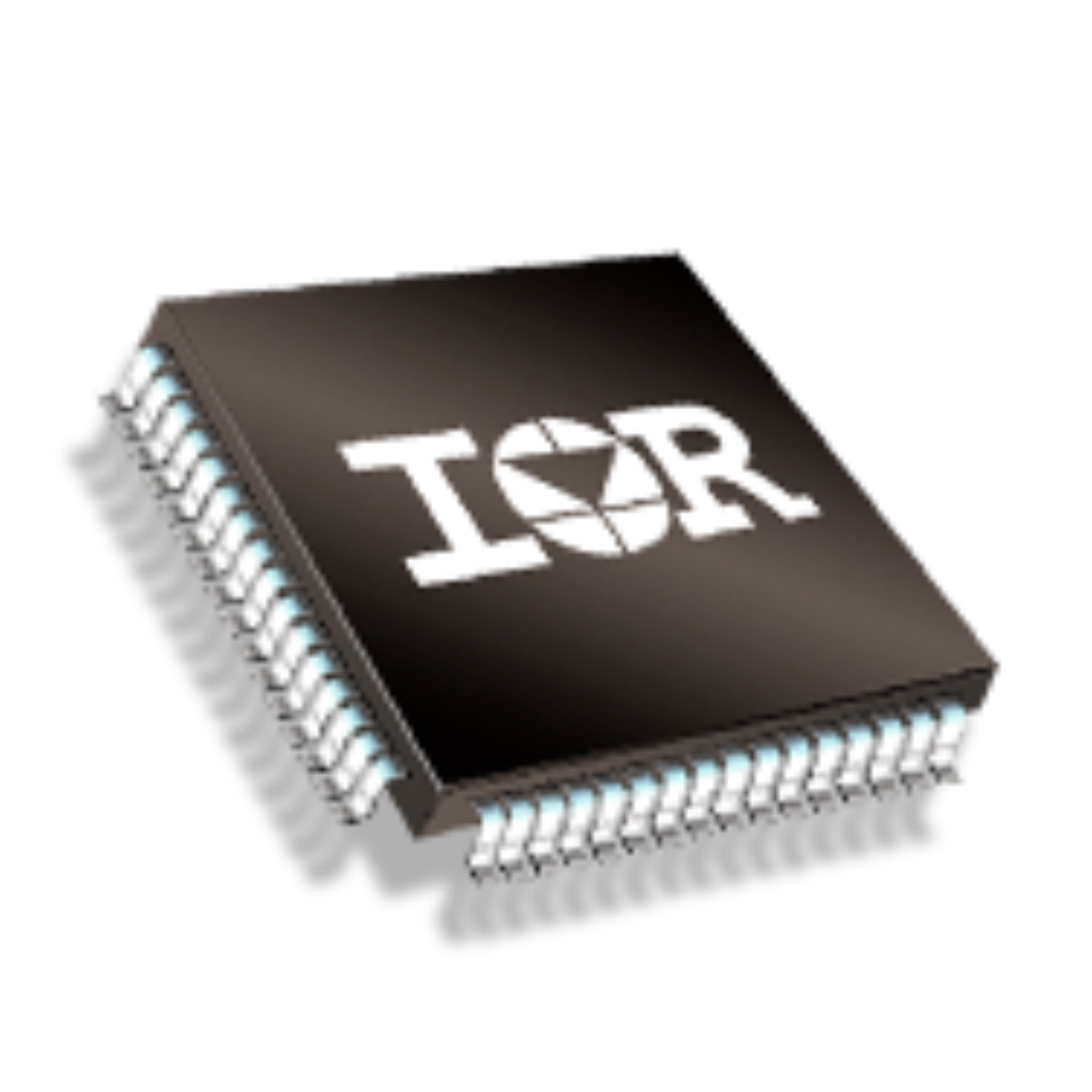

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRMCF341
Manufacturer

Infineon
ChipWorker Part#

CW388142800
RoHS

Lead free / RoHS Compliant
Description

Sensorless Motor Driver 1.8V/3.3V 64Pin PQFP
Documentation

Datasheet

IRMCF341 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRMCF341 Specifications

Attribute	Attribute Value

Part Number	IRMCF341
Manufacturer	Infineon
ChipWorker Part#	CW388142800
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	QFP-64
Part Family	IRMCF341
	expand all
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Summary of Features:
Motion Control Engine (MCE) - Field proven computation engine for high efficiency sinusoidal sensorless motor control
MCU 8051 with 120MHz
Built-in support for single or two shunt current feedback
Loss minimization Space Vector PWM
Built-in digital & analog peripheral set
UART, I2C & SPI serial interfaces
Additional analog & digital application IOs
Integrated protection features
JTAG interface
64KB RAM memory for development
QFP64 package
Benefits:
Fastest motor control implementation
* ready-to-use algorithm based on MCE
sinusoidal PMSM FOC control
easy motor parametrization
Additional flexibility with integrated MCU
* integrated A/D converter, OP amps & comparators
single or leg shunt
internal oscillator
Targeting single motor application
Optimally combined with a CIPOS™ Nano
OTP version for high volume manufaturing: IRMCK341
