BLF184XRU - Ampleon USA

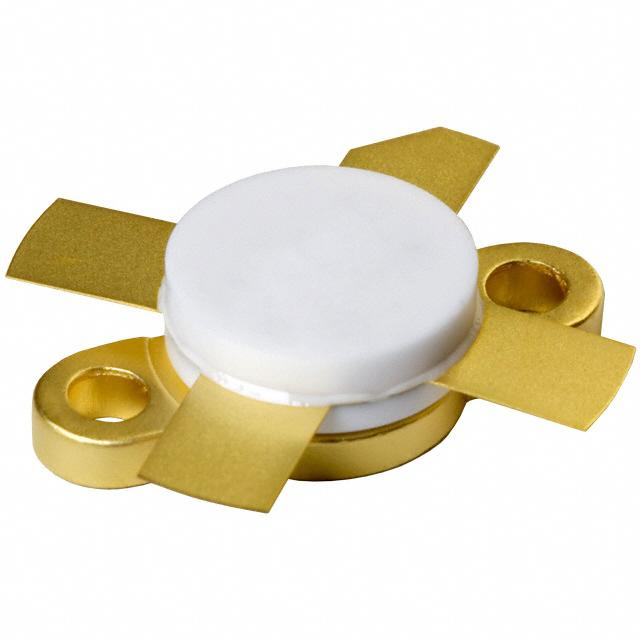

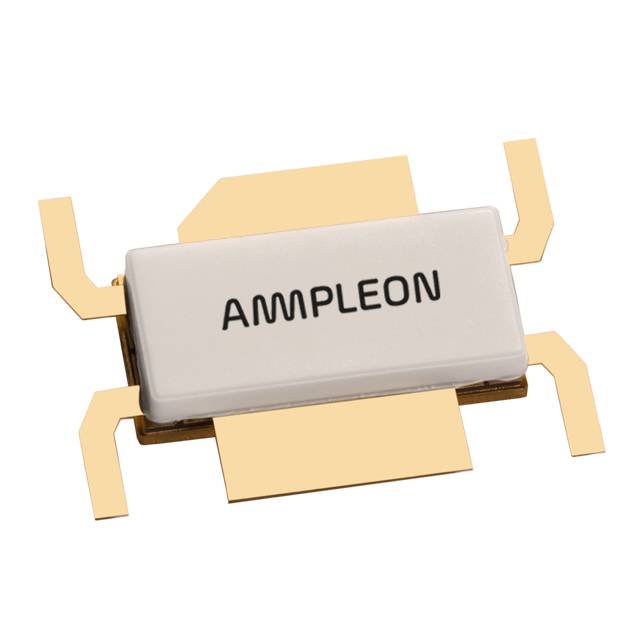

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BLF184XRU
Manufacturer

Ampleon USA
ChipWorker Part#

CW6275053
Category

Transistor
Package

SOT-1214
Description

Trans RF MOSFET N-CH 135V 5Pin SOT-1214A Bulk
Documentation

Datasheet

BLF184XRU Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BLF184XRU Specifications

Attribute	Attribute Value

Part Number	BLF184XRU
Manufacturer	Ampleon USA
ChipWorker Part#	CW6275053
Category	Transistor
Documentation	Datasheet
Mounting Style	Screw
Number of Pins	5 Pin
Case/Package	SOT-1214
Frequency	108 MHz
Output Power	700 W
Gain	23.9 dB
Test Current	100 mA
Input Capacitance (Ciss)	269pF @50V(Vds)
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-65 ℃
Voltage Rating	135 V
Supply Voltage	50 V
	expand all
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Ampleon"s 700 W extremely rugged LDMOS power transistor for broadcast and industrial applications in the HF to 600 MHz band. ### Features and benefitsIntegrated ESD protection * Excellent ruggedness * Designed for broadband operation (HF to 600 MHz) * High efficiency * Excellent thermal stability * Easy power control * Compliant to Directive 2002/95/EC, regarding Restriction of Hazardous Substances (RoHS) ### Applications * Industrial, scientific and medical applications * Broadcast transmitter applications
