ISL12024IBZ - Intersil

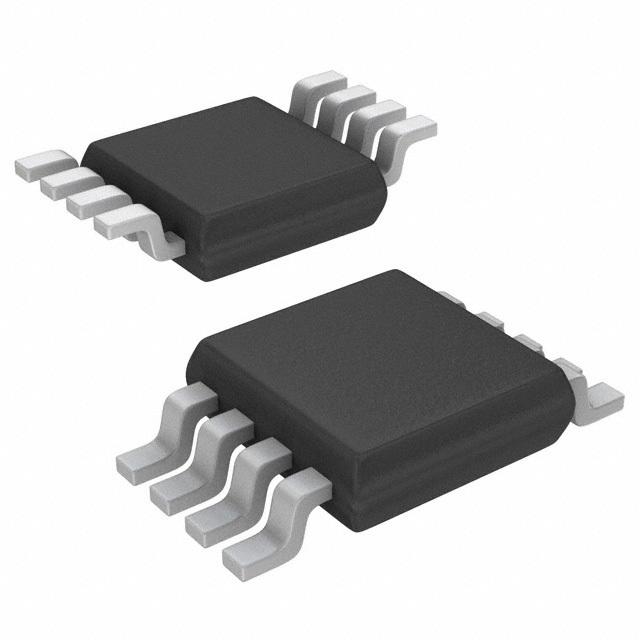

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ISL12024IBZ
Manufacturer

Intersil
ChipWorker Part#

CW74866726
Category

Real Time Clock IC
Package

SOIC-8
Description

Real Time Clock Serial 512Byte Clock/Calendar/Alarm/Battery Backup/Interrupt 8Pin SOIC N Tube
Documentation

Datasheet

ISL12024IBZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ISL12024IBZ Specifications

Attribute	Attribute Value

Part Number	ISL12024IBZ
Manufacturer	Intersil
ChipWorker Part#	CW74866726
Category	Real Time Clock IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	2.70V (min)
Number of Outputs	1 Output
Clock Speed	400 kHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Product Description

The ISL12024 device is a micro-power real-time clock with embedded 64-bit unique ID, timing and crystal compensation, clock/calender, power-fail indicator, two periodic or polled alarms, intelligent battery backup switching, and integrated 512x8-bit EEPROM configured in 16 Bytes per page.
Features
• Real-Time Clock/Calendar
\- Tracks Time in Hours, Minutes, and Seconds
\- Day of the Week, Day, Month and Year
\- 3 Selectable Frequency Outputs
• 64-bit Unique ID
• Two Non-Volatile Alarms
\- Settable on the Second, Minute, Hour, Day of the Week,Day or Month
\- Repeat Mode (Periodic Interrupts)
• Automatic Backup to Battery or Super Cap
• On-Chip Oscillator Compensation
\- Internal Feedback Resistor and Compensation Capacitors
\- 64 Position Digitally Controlled Trim Capacitor
\- 6 Digital Frequency Adjustment Settings to ±30ppm
• 512x8-Bits of EEPROM
\- 16-Bytes Page Write Mode (32 total pages)
\- 8 Modes of BlockLock™ Protection
\- Single Byte Write Capability
• High Reliability
\- Data Retention: 50 years
\- Endurance: 2,000,000 Cycles Per Byte
•I2C Bus™
\- 400kHz Data Transfer Rate
• 800nA Battery Supply Current
• Package Options
\- 8 Ld SOIC and 8 Ld TSSOP Packages
\- Pin-Compatible with the ISL12026
• Pb-Free (RoHS Compliant)
