ISO35DW - TI

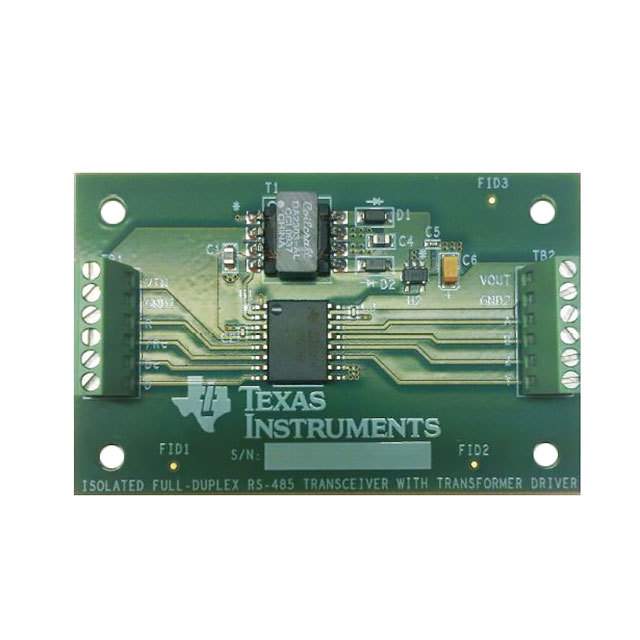

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ISO35DW
Manufacturer

TI
ChipWorker Part#

CW9354965
Category

Interface IC, Interface Controller
Package

SOIC-16
Description

DG ISO 2.5kV RS422/RS485 16SOIC
Documentation

Datasheet

ISO35DW Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ISO35DW Specifications

Attribute	Attribute Value

Part Number	ISO35DW
Manufacturer	TI
ChipWorker Part#	CW9354965
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	3.15V (min)
Number of Channels	3 Channel
Number of Positions	16 Position
Data Rate	1.00 Mbps
Isolation Voltage	2.5 kVrms
Thermal Shutdown	Yes
Drivers Per Package	1
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3.15V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3.15 V
	expand all
Size-Length	10.5 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The ISO35DW is an isolated full-duplex differential Line Driver and Receiver for TIA/EIA 485/422 applications. This device is ideal for long transmission lines because the ground loop is broken to allow for a much larger common-mode voltage range. The symmetrical barrier of the device is tested to provide isolation of 4000VPK per VDE and 2500VRMS per UL and CSA between the bus-line transceiver and the logic-level interface. Any cabled I/O can be subjected to electrical noise transients from various sources. These noise transients can cause damage to the transceiver or nearby sensitive circuitry if they are of sufficient magnitude and duration. This isolated device can significantly increase protection and reduce the risk of damage to expensive control circuits.
Thermal shutdown protection
Failsafe receiver (bus open, bus shorted and bus idle)
1/8 Unit-load (up to 256 nodes on the bus)
1Mbps Signalling rate
16pF Typical low bus capacitance
50kV/µs Typical transient immunity
Green product and no Sb/Br
