ITS4141NHUMA1 - Infineon

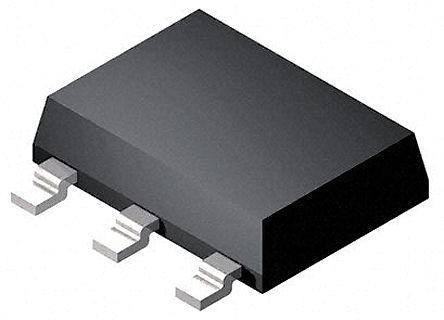

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ITS4141NHUMA1
Manufacturer

Infineon
ChipWorker Part#

CW16020892
Category

Power Distribution
Package

SOT-223-4
Description

Power Switch Hi Side 0.7A 4Pin(3+Tab) SOT-223
Documentation

Datasheet

ITS4141NHUMA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ITS4141NHUMA1 Specifications

Attribute	Attribute Value

Part Number	ITS4141NHUMA1
Manufacturer	Infineon
ChipWorker Part#	CW16020892
Category	Power Distribution
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-223-4
Number of Outputs	1 Output
Output Current	0.7 A
Supply Current	1 mA
Number of Positions	4 Position
Power Dissipation	1.4 W
Output Current (Max)	700 mA
Output Current (Min)	0.7 A
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Power Dissipation (Max)	1400 mW
Supply Voltage (Max)	45 V
Supply Voltage (Min)	12 V
Input Voltage	45 V
	expand all
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-30℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The ITS4141N is a single channel smart high side power switch in 4 pin SOT-223 package. This high side power switch with integrated vertical power FET provides embedded protection and diagnostic functions.
Short circuit, overload and overvoltage protection
On-state resistance (Ron) of 150mohm at Tj = 25°C and IL = 0.5A
Overvoltage protection (Vbb(AZ)) of 47V
Operating voltage (Vbb(on)) from 12V to 45V
Clamp of negative voltage at output with inductive loads
CMOS compatible input
Undervoltage shutdown with auto restart and hysteresis
Reverse battery protection with external resistor and thermal shutdown with restart
Improved electromagnetic compatibility (EMC)
Operating temperature range from -30°C to 85°C
