IXFN420N10T - IXYS Semiconductor

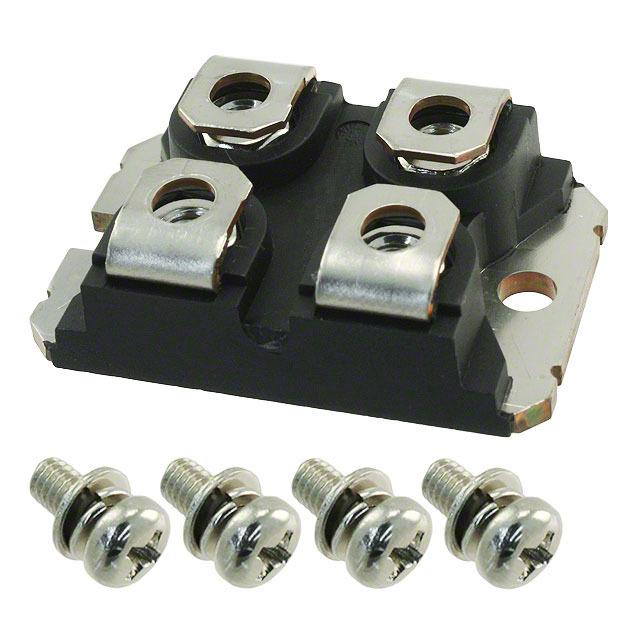

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IXFN420N10T
Manufacturer

IXYS Semiconductor
ChipWorker Part#

CW7724467
Category

MOSFET, MOSFET Transistor
Package

SOT-227-4
Description

Trans MOSFET N-CH 100V 420A 4Pin SOT-227B
Documentation

Datasheet

IXFN420N10T Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IXFN420N10T Specifications

Attribute	Attribute Value

Part Number	IXFN420N10T
Manufacturer	IXYS Semiconductor
ChipWorker Part#	CW7724467
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Chassis
Number of Pins	4 Pin
Case/Package	SOT-227-4
Power Dissipation	1070 W
Threshold Voltage	5 V
Drain to Source Voltage (Vds)	100 V
Rise Time	155 ns
Input Capacitance (Ciss)	47000 pF
Fall Time	255 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1070W (Tc)
	expand all
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

N-Channel 100V 420A (Tc) 1070W (Tc) Chassis Mount SOT-227B
