IZ2412S - XP Power

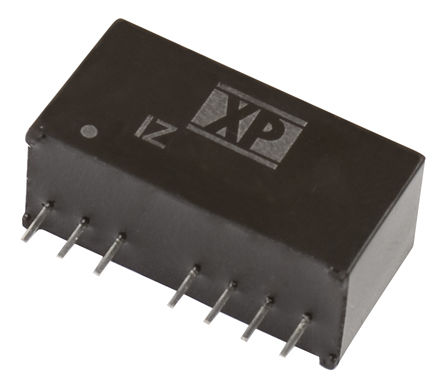

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IZ2412S
Manufacturer

XP Power
ChipWorker Part#

CW76979313
Category

DC to DC Converter, DC/DC Converter
Package

SIP-8
Description

XP POWER IZ2412S Isolated Board Mount DC-DC Converter, SIP, Through Hole, Fixed, 36V, 18V, 2
Documentation

Datasheet

IZ2412S Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IZ2412S Specifications

Attribute	Attribute Value

Part Number	IZ2412S
Manufacturer	XP Power
ChipWorker Part#	CW76979313
Category	DC to DC Converter, DC/DC Converter
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	SIP-8
Supply Voltage (DC)	24.0 V
Power Rating	3 W
Number of Outputs	2 Output
Input Voltage (DC)	18.0V ~ 36.0V
Output Voltage	12 VDC
Output Current	125 mA
Output Power	3 W
Isolation Voltage	1.6 kV
Input Voltage (Max)	36 V
Input Voltage (Min)	18 V
Input Voltage (DC Max)	36 V
Input Voltage (DC Min)	18 v
Output Current (Max)	125 mA
Input Power (Max)	3 W
Input Voltage	18VDC ~ 36VDC
	expand all
Size-Length	21.85 mm
Size-Width	9.2 mm
Size-Height	11.1 mm
Weight	3.9 g
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Product Description

Fully regulated 3 Watt DC/DC converter in a SIP package with a wide 2:1 input range and continuous short circuit protection.
Wide 2:1 Input Range
Compact SIP Package
1600 VDC Isolation
Regulated Output
Efficiency up to 84%
Continuous Short Circuit Protection
-40°C to 70°C Operating Temperature
