JE150429981 - 3M

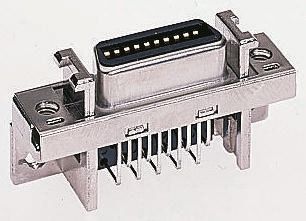

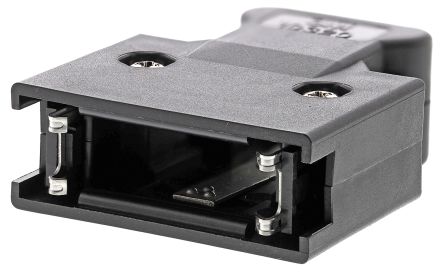

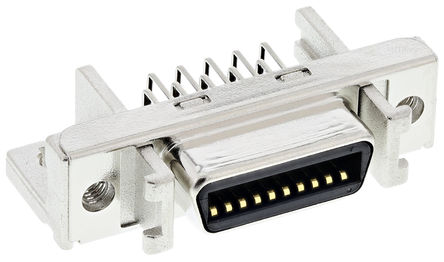

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

JE150429981
Manufacturer

3M
ChipWorker Part#

CW132987363
Category

D-Sub Connector, D-Sub Standard Connector, Connector D-Subminiature
Description

Conn Mini D Ribbon PL 20POS 2.54mm Solder Cup ST Cable Mount 20 Terminal 1Port
Documentation

Datasheet

JE150429981 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

JE150429981 Specifications

Attribute	Attribute Value

Part Number	JE150429981
Manufacturer	3M
ChipWorker Part#	CW132987363
Category	D-Sub Connector, D-Sub Standard Connector, Connector D-Subminiature
Documentation	Datasheet
Number of Contacts	20 Contact
Insulation Resistance	100 MΩ
Current Rating (Max)	1 A
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-55 ℃
	expand all
Size-Height	9.1 mm
Contact Material	Copper Alloy
RoHS	RoHS Compliant

Product Description

The JE150429981 is a 20-position Micro D-sub Plug with gold-plated copper contacts. Solder contact termination.
