JS1300AQ - E-Switch

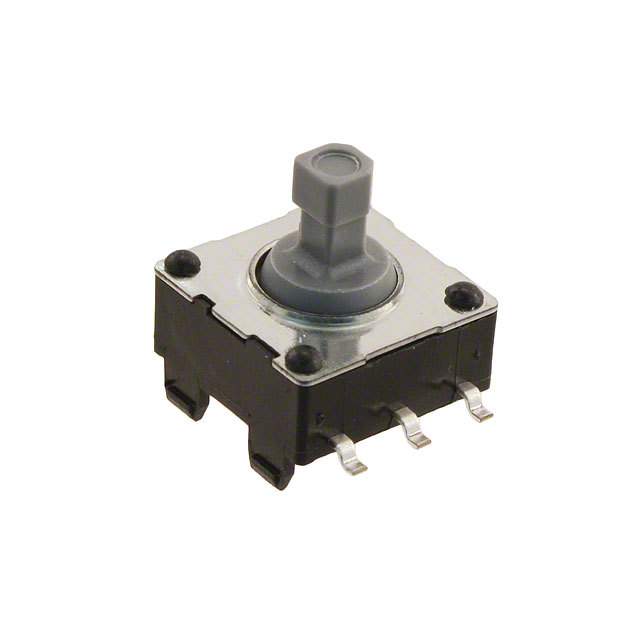

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

JS1300AQ
Manufacturer

E-Switch
ChipWorker Part#

CW7844393
Category

Tactile Switch, Jog Switch
Package

SMD
Description

SW NAV 5POS 12VDC 50mA SMT
Documentation

Datasheet

JS1300AQ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

JS1300AQ Specifications

Attribute	Attribute Value

Part Number	JS1300AQ
Manufacturer	E-Switch
ChipWorker Part#	CW7844393
Category	Tactile Switch, Jog Switch
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	SMD
Supply Voltage (DC)	12.0 V
Voltage Rating (DC)	12 V
Current Rating (Max)	0.05 A
	expand all
Size-Length	10.4 mm
Size-Width	9.8 mm
Size-Height	1.55 mm
Contact Material	Silver
Operating Temperature	-20℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536509033
ECCN Code	EAR99

Product Description

Electromechanical Switch N.O. 5PST 0.05A T/R
