LM2903MX - Fairchild

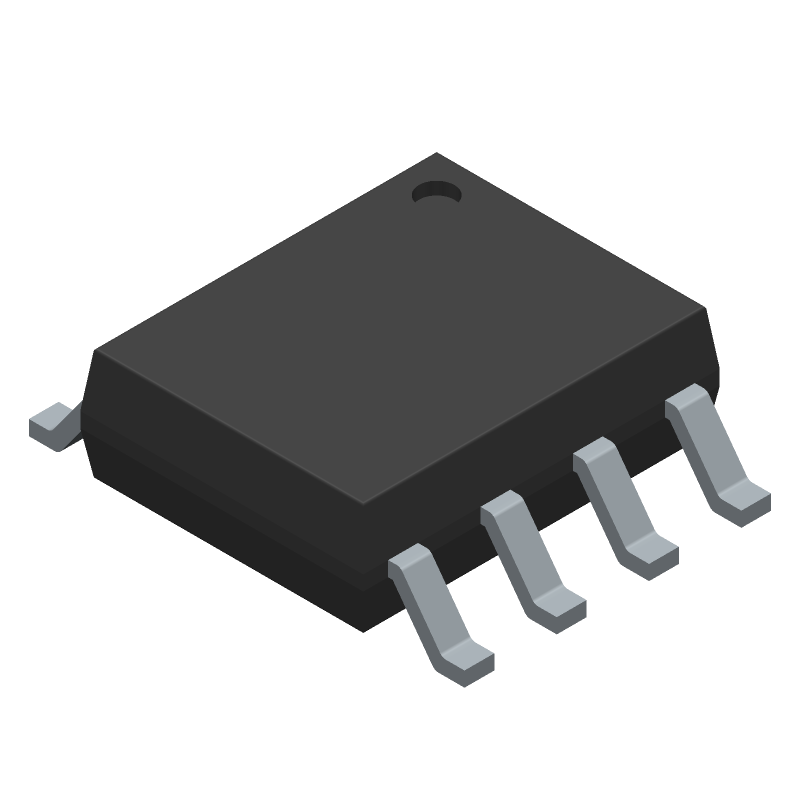

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LM2903MX
Manufacturer

Fairchild
ChipWorker Part#

CW9708092
Category

Comparator, Analog Comparator IC
Package

SOIC-8
Description

FAIRCHILD SEMICONDUCTOR LM2903MX Analog Comparator, Dual, Differential, 2, 1.4µs, ± 1V to ± 18V, SOIC, 8Pins
Documentation

Datasheet

LM2903MX Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LM2903MX Specifications

Attribute	Attribute Value

Part Number	LM2903MX
Manufacturer	Fairchild
ChipWorker Part#	CW9708092
Category	Comparator, Analog Comparator IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	18.0V (min)
Output Current	16mA @5V
Supply Current	1 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	480 W
Input Offset Voltage	7 mV
Input Bias Current	250 nA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	480 mW
	expand all
Size-Length	5.13 mm
Size-Width	3.95 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

Comparator General Purpose Open-Collector, CMOS, DTL, ECL, MOS, TTL 8-SOIC
