LM4041DFTA - Diodes

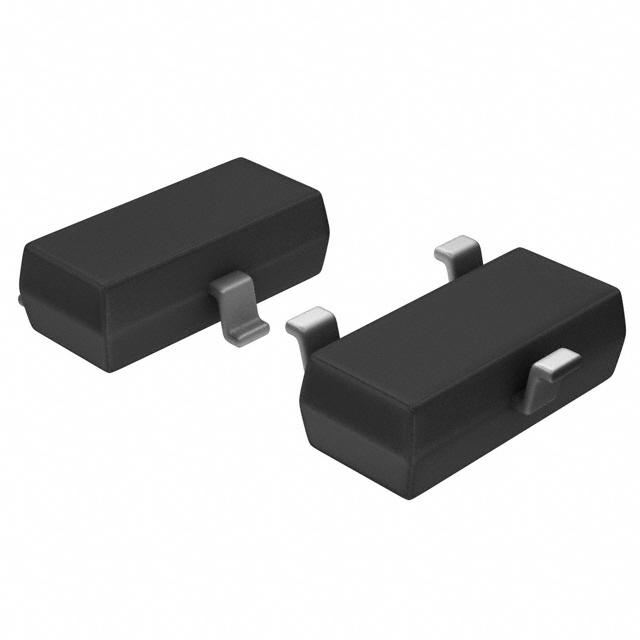

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LM4041DFTA
Manufacturer

Diodes
ChipWorker Part#

CW6446537
Category

Voltage Reference
Package

SOT-23-3
Description

V-Ref Precision 1.225V 12mA 3Pin SOT-23 T/R
Documentation

Datasheet

LM4041DFTA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LM4041DFTA Specifications

Attribute	Attribute Value

Part Number	LM4041DFTA
Manufacturer	Diodes
ChipWorker Part#	CW6446537
Category	Voltage Reference
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Capacitance Tolerance	±1 %
Output Voltage	1.225 V
Output Current	12 mA
Number of Channels	1 Channel
Number of Positions	3 Position
Input Voltage (Max)	15 V
Output Voltage (Max)	1.225 V
Output Voltage (Min)	1.225 V
Output Current (Max)	12 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	≤10 V
	expand all
Operating Temperature	-40℃ ~ 125℃
Temperature Coefficient	±20 ppm/℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

Even in the event of large power supply variations, this LM4041DFTA voltage reference power management device from Diodes Zetex can produce and maintain a precise DC voltage. It has an initial accuracy of 1%. With an output that has a voltage of 1.225 V, this is power management at its best. At a load regulation of 8mV a constant current can be produced at the output of your circuit. This voltage reference circuit supports shunt topology. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It runs with a maximum temperature coefficient of 150ppm/°C. This voltage reference circuit has an operating temperature range of -40 °C to 125 °C.
