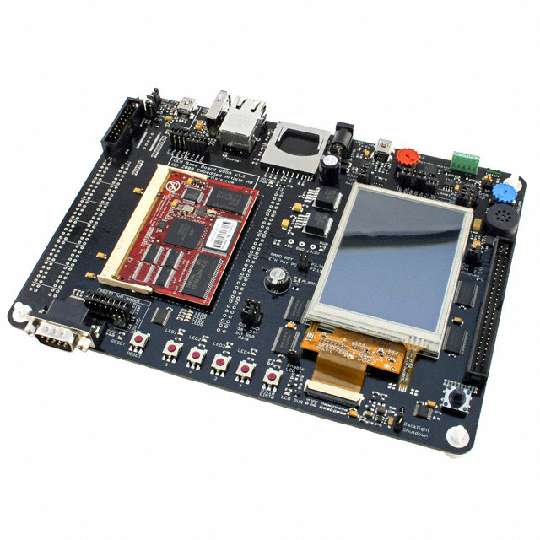

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

161 points

Part No

LPC2478FBD208
Manufacturer

NXP
ChipWorker Part#

CW7405808
Package

LQFP-208
Description

Single-chip 16Bit/32Bit micro; 512KB flash, Ethernet, CAN, LCD, USB 2.0 device/host/OTG, external memory interface
Documentation

Datasheet
Ships from

Moscow
Наличие

1022 pcs In Stock
Estimated Price

$ 13.99

Buy LPC2478FBD208

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

LPC2478FBD208 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

LPC2478FBD208 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	LPC2478FBD208
Manufacturer	NXP
ChipWorker Part#	CW7405808
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	208 Pin
Case/Package	LQFP-208
Operating Voltage	3VDC ~ 3.6VDC
Clock Speed	72 MHz
RAM Memory Size	98 KB
Number of ADCs	1 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1500 mW
Number of DACs	1 DAC
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant

Similar & Replacement Parts

Similar products

Product Description

Overview
NXP® Semiconductors designed the LPC2478 microcontroller, powered by the ARM7TDMI-S core, to be a highly integrated microcontroller for a wide range of applications that require advanced communications and high quality graphic displays. The LPC2478 microcontroller has 512 kB of on-chip high-speed flash memory. This flash memory includes a special 128-bit wide memory interface and accelerator architecture that enables the CPU to execute sequential instructions from flash memory at the maximum 72 MHz system clock rate. This feature is available only on the LPC2000 ARM microcontroller family of products. The LPC2478, with real-time debug interfaces that include both JTAG and embedded trace, can execute both 32-bit ARM and 16-bit Thumb instructions.
The LPC2478 microcontroller incorporates an LCD controller, a 10/100 Ethernet Media Access Controller (MAC), a USB full-speed Device/Host/OTG Controller with 4 kB of endpoint RAM, four UARTs, two Controller Area Network (CAN) channels, an SPI interface, two Synchronous Serial Ports (SSP), three I²C interfaces, and an I²S interface. Supporting this collection of serial communications interfaces are the following feature components; an on-chip 4 MHz internal oscillator, 98 kB of total RAM consisting of 64 kB of local SRAM, 16 kB SRAM for Ethernet, 16 kB SRAM for general purpose DMA, 2 kB of battery powered SRAM, and an External Memory Controller (EMC). These features make this device optimally suited for portable electronics and Point-of-Sale (POS) applications. Complementing the many serial communication controllers, versatile clocking capabilities, and memory features are various 32-bit timers, a 10-bit ADC, 10-bit DAC, two PWM units, and up to 160 fast GPIO lines. The LPC2478 connects 64 of the GPIO pins to the hardware based Vector Interrupt Controller (VIC) allowing the external inputs to generate edge-triggered interrupts. All of these features make the LPC2478 particularly suitable for industrial control and medical systems.
MoreLess
## Features
* ARM7TDMI-S processor, running at up to 72 MHz.
* 512 kB on-chip flash program memory with In-System Programming (ISP) and In-Application Programming (IAP) capabilities. Flash program memory is on the ARM local bus for high performance CPU access.
* 98 kB on-chip SRAM includes:
* 64 kB of SRAM on the ARM local bus for high performance CPU access.
* 16 kB SRAM for Ethernet interface. Can also be used as general purpose SRAM.
* 16 kB SRAM for general purpose DMA use also accessible by the USB.
* 2 kB SRAM data storage powered from the Real-Time Clock (RTC) power domain.
* LCD controller, supporting both Super-Twisted Nematic (STN) and Thin-Film Transistors (TFT) displays.
* Dedicated DMA controller.
* Selectable display resolution (up to 1024 × 768 pixels).
* Supports up to 24-bit true-color mode.
* Dual Advanced High-performance Bus (AHB) system allows simultaneous Ethernet DMA, USB DMA, and program execution from on-chip flash with no contention.
* EMC provides support for asynchronous static memory devices such as RAM, ROM and flash, as well as dynamic memories such as single data rate SDRAM.
* Advanced Vectored Interrupt Controller (VIC), supporting up to 32 vectored interrupts.
* General Purpose DMA (GPDMA) controller on AHB that can be used with the SSP, I²S-bus, and SD/MMC interface as well as for memory-to-memory transfers.
* Serial Interfaces:
* Ethernet MAC with MII/RMII interface and associated DMA controller. These functions reside on an independent AHB.
* USB 2.0 full-speed dual port device/host/OTG controller with on-chip PHY and associated DMA controller.
* Four UARTs with fractional baud rate generation, one with modem control I/O, one with IrDA support, all with FIFO.
* CAN controller with two channels.
* SPI controller.
* Two SSP controllers, with FIFO and multi-protocol capabilities. One is an alternate for the SPI port, sharing its interrupt. SSPs can be used with the GPDMA controller.
* Three I²C-bus interfaces (one with open-drain and two with standard port pins).
* I²S (Inter-IC Sound) interface for digital audio input or output. It can be used with the GPDMA.
* Other peripherals:
* SD/MMC memory card interface.
* 160 General purpose I/O pins with configurable pull-up/down resistors.
* 10-bit ADC with input multiplexing among 8 pins.
* 10-bit DAC.
* Four general purpose timers/counters with 8 capture inputs and 10 compare outputs. Each timer block has an external count input.
* Two PWM/timer blocks with support for three-phase motor control. Each PWM has an external count input.
* RTC with separate power domain. Clock source can be the RTC oscillator or the APB clock.
* 2 kB SRAM powered from the RTC power pin, allowing data to be stored when the rest of the chip is powered off.
* WatchDog Timer (WDT). The WDT can be clocked from the internal RC oscillator, the RTC oscillator, or the APB clock.
* Single 3.3 V power supply (3.0 V to 3.6 V).
* 4 MHz internal RC oscillator trimmed to 1 % accuracy that can optionally be used as the system clock.
* Four reduced power modes: idle, sleep, power-down and deep power-down.
* Four external interrupt inputs configurable as edge/level sensitive. All pins on port 0 and port 2 can be used as edge sensitive interrupt sources.
* Processor wake-up from Power-down mode via any interrupt able to operate during Power-down mode (includes external interrupts, RTC interrupt, USB activity, Ethernet wake-up interrupt, CAN bus activity, port 0/2 pin interrupt).
* Two independent power domains allow fine tuning of power consumption based on needed features.
* Each peripheral has its own clock divider for further power saving. These dividers help reduce active power by 20 % to 30 %.
* Brownout detect with separate thresholds for interrupt and forced reset.
* On-chip power-on reset.
* On-chip crystal oscillator with an operating range of 1 MHz to 25 MHz.
* On-chip PLL allows CPU operation up to the maximum CPU rate without the need for a high frequency crystal. May be run from the main oscillator, the internal RC oscillator, or the RTC oscillator.
* Boundary scan for simplified board testing.
* Versatile pin function selections allow more possibilities for using on-chip peripheral functions.
* Standard ARM test/debug interface for compatibility with existing tools.
* Emulation trace module supports real-time trace.
## Target Applications
* Industrial control
* Medical systems
* Portable electronics
* Point-of-Sale (POS) equipment
