LT1358 - Linear Technology

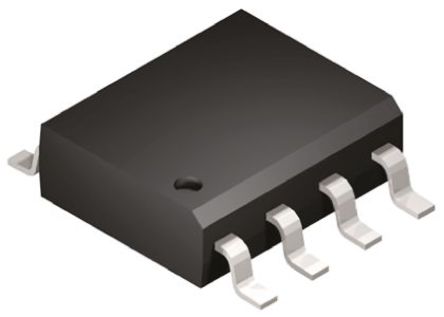

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LT1358
Manufacturer

Linear Technology
ChipWorker Part#

CW543623366
RoHS

Lead free / RoHS Compliant
Description

Dual and Quad 25MHz, 600V/us Op Amps
Documentation

Datasheet

LT1358 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LT1358 Specifications

Attribute	Attribute Value

Part Number	LT1358
Manufacturer	Linear Technology
ChipWorker Part#	CW543623366
Documentation	Datasheet
	expand all
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

DESCRIPTION
The LT® 1357 is a high speed, very high slew rate operational amplifier with outstanding AC and DC performance. The LT1357 has much lower supply current, lower input offset voltage, lower input bias current, and higher DC gain than devices with comparable bandwidth. The circuit
topology is a voltage feedback amplifier with the slewing characteristics of a current feedback amplifier. The amplifier is a single gain stage with outstanding settling characteristics which makes the circuit an ideal choice for data acquisition systems. The output drives a 500Ωload to ±12V with ±15V supplies and a 150Ω load to ±2.5V on ±5V supplies. The amplifier is also stable with any capacitive load which makes it useful in buffer or cable driver applications.
FEATURES
■ 25MHz Gain Bandwidth
■ 600V/µs Slew Rate
■ 2.5mA Maximum Supply Current
■ Unity-Gain Stable
■ C-Load
TM
Op Amp Drives All Capacitive Loads
■ 8nV/√Hz Input Noise Voltage
■ 600µV Maximum Input Offset Voltage
■ 500nA Maximum Input Bias Current
■ 120nA Maximum Input Offset Current
■ 20V/mV Minimum DC Gain, RL=1k
■ 115ns Settling Time to 0.1%, 10V Step
■ 220ns Settling Time to 0.01%, 10V Step
■ ±12V Minimum Output Swing into 500Ω
■ ±2.5V Minimum Output Swing into 150Ω
■ Specified at ±2.5V, ±5V, and ±15V
APPLICATIONS
■ Wideband Amplifiers
■ Buffers
■ Active Filters
■ Data Acquisition Systems
■ Photodiode Amplifiers
