MAX6126A25+ ,Voltage Reference - Maxim Integrated

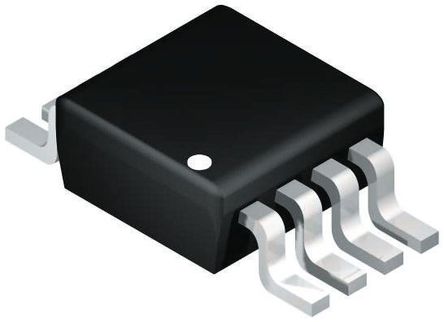

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

101 points

Part No

MAX6126A25+
Manufacturer

Maxim Integrated
ChipWorker Part#

CW36428166
Category

Voltage Reference
Package

TSSOP-8
Description

Maxim MAX6126A25+, Fixed Series Voltage Reference 2.5V, 0.06% 12.6V max., 8Pin MAX
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 5.86

Buy MAX6126A25+

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

MAX6126A25+ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

MAX6126A25+ Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	MAX6126A25+
Manufacturer	Maxim Integrated
ChipWorker Part#	CW36428166
Category	Voltage Reference
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TSSOP-8
Supply Voltage (DC)	2.70V (min)
Capacitance Tolerance	±0.06 %
Input Voltage (DC)	2.70V ~ 12.6V
Output Voltage	2.5 V
Output Current	10 mA
Supply Current	725 µA
Number of Channels	1 Channel
Number of Positions	8 Position
Input Voltage (Max)	12.6 V
Output Voltage (Max)	2.5 V
Output Voltage (Min)	2.5 V
Output Current (Max)	0 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.06 %
Voltage Rating	2.5 V
Input Voltage	2.7V ~ 12.6V
	expand all
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Temperature Coefficient	±3 ppm/℃
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The MAX6126A25+ is a high precision, ultra low noise, low dropout, series voltage reference in 8 pin µMax package. This voltage reference features curvature correction circuitry, high stability and laser trimmed thin film resistors that result in 2ppm/°C temperature coefficients and an excellent ±0.06% (maximum) initial accuracy. The low noise reference architecture produces a low flicker noise of 1.3µVP-P and wideband noise as low as 60nV/√Hz without increased supply current usually found in low noise references. The wideband noise is improved to 35nV/√Hz and AC power supply rejection is also improved by adding 0.1µF capacitor at noise reduction pin. The load regulation specifications are less than 0.025ohm for sink and source currents up to 10mA.
Supply voltage range from 2.7V to 12.6V
Automotive temperature range from -40°C to 125°C
Output voltage is 2.5V
Maximum low dropout voltage is 200mV
Quiescent supply current is 380µA at 25°C
Stable with capacitive load stability range (Cload) from 0.1µF to 10µF
Low long term stability of 100ppm/1000hr
Maximum line regulation is 20µV/V at 25°C
Maximum load regulation is 25µV/mA at 10mA source and sink current
Force and sense outputs for remote sensing
