MAX9867 - Maxim Integrated

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MAX9867
Manufacturer

Maxim Integrated
ChipWorker Part#

CW481503972
RoHS

Lead free / RoHS Compliant
Description

Low-Power, Stereo Audio CodecUltra-Low-Power, Stereo Audio Codec Integrates Auxiliary Battery-Measurement ADC and Capacitorless Headphone Amps
Documentation

Datasheet

MAX9867 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MAX9867 Specifications

Attribute	Attribute Value

Part Number	MAX9867
Manufacturer	Maxim Integrated
ChipWorker Part#	CW481503972
Documentation	Datasheet
Case/Package	TQFN-32
	expand all
RoHS	RoHS Compliant

Product Description

General Description

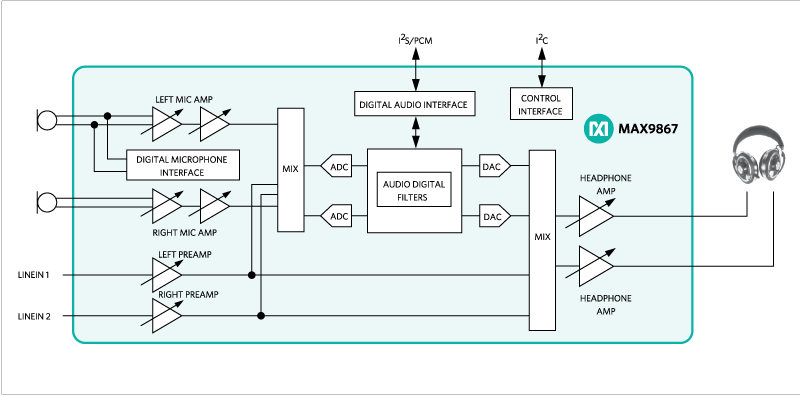

The MAX9867 is an ultra-low power stereo audio codec designed for portable consumer devices such as mobile phones and portable gaming consoles.
Features
♦1.8V Single-Supply Operation
♦6.7mW Playback Power Consumption
♦90dB Stereo DAC, 8kHz ≤fs ≤48kHz
♦85dB Stereo ADC, 8kHz ≤fs ≤48kHz
♦Battery-Measurement Auxiliary ADC
♦Support for Any Master Clock Between 10MHz to 60MHz
♦Stereo Digital Microphone Input Support
♦Stereo Analog Differential Microphone Inputs
♦Stereo Headphone Amplifiers: Differential, Single-Ended, or Capacitorless
♦Stereo Line Inputs
♦Voiceband Filter with a Stopband Attenuation Greater than 70dB
♦1.65V to 3.6V Digital Interface Supply Voltage
♦I2S/TDM-Compatible Digital Audio Bus
♦30-Bump, 2.2mm x 2.7mm 0.4mm-Pitch WLP
Applications
Cell Phones
Portable Gaming Devices
Portable Navigation Devices
Portable Multimedia Players
Wireless Headsets

expand all
