MBR745 ,Schottky Diode - ON Semiconductor

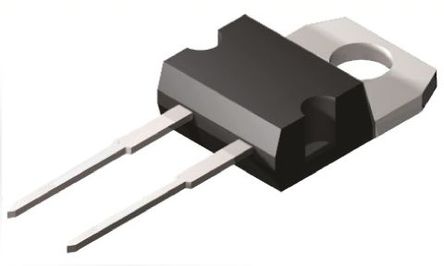

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

86 points

Part No

MBR745
Manufacturer

ON Semiconductor
ChipWorker Part#

CW24026833
Category

Schottky Diode
Package

TO-220-2
Description

45V 7.5A 0.84V
Documentation

Datasheet
Ships from

Moscow
Наличие

5000 pcs In Stock
Estimated Price

$ 0.41

Buy MBR745

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

MBR745 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

MBR745 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	MBR745
Manufacturer	ON Semiconductor
ChipWorker Part#	CW24026833
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Voltage Rating (DC)	45.0 V
Current Rating	7.50 A
Output Current	≤7.50 A
Number of Positions	2 Position
Forward Voltage	0.84 V
Polarity	Standard
Max Repetitive Reverse Voltage (Vrrm)	45V
Forward Current	7.5 A
Max Forward Surge Current (Ifsm)	150 A
Maximum Forward Voltage (Max)	840 mV
Forward Current (Max)	7.5 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
	expand all
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead

Similar & Replacement Parts

Similar products

Product Description

The MBR745 is a Schottky Rectifier features high current capacity and low forward-voltage drop.
Low power loss, high efficiency
High surge capacity
Metal silicon junction, majority carrier conduction
Guard-ring for overvoltage protection (OVP)
