ML4824CP1 ,Power Management IC - Fairchild

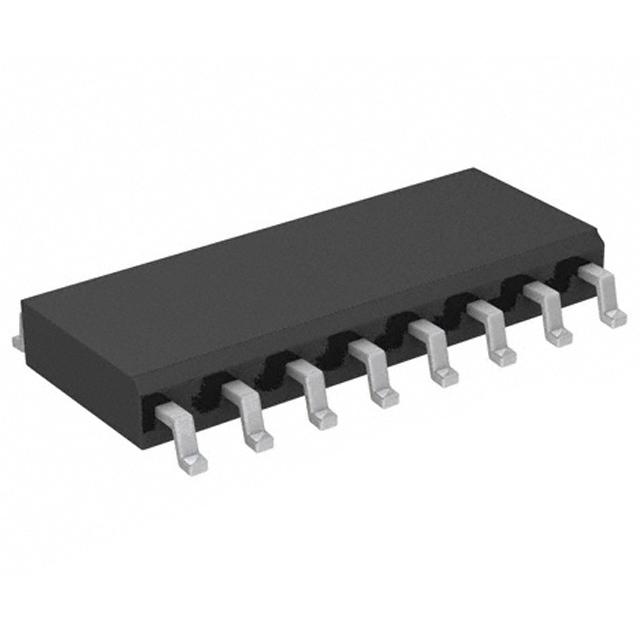

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

43 points

Part No

ML4824CP1
Manufacturer

Fairchild
ChipWorker Part#

CW63465210
Category

Power Management IC
Package

DIP-16
Description

Power Factor Correction PWM CONTRLR 0.7mA 81kHz 16Pin PDIP Rail
Documentation

Datasheet
Ships from

Moscow
Наличие

26271 pcs In Stock
Estimated Price

$ 3.15

Buy ML4824CP1

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

ML4824CP1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

ML4824CP1 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	ML4824CP1
Manufacturer	Fairchild
ChipWorker Part#	CW63465210
Category	Power Management IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Frequency	250 kHz
Supply Voltage (DC)	11.8V (max)
Number of Outputs	2 Output
Output Voltage	7.50 V
Number of Positions	16 Position
Input Current	10.0 mA
Quiescent Current	16.0 mA
Switching Frequency	76 kHz
Duty Cycle	95 %
Maximum Duty Cycle	95 %
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	10.5V ~ 13.2V
Supply Voltage (Max)	11.8 V
	expand all
Size-Length	19.68 mm
Size-Width	6.6 mm
Size-Height	4.95 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The ML4824CP1 is a CCM PFC + PWM Combination Controller for switched mode power supplies. The Power Factor Correction (PFC) allows the use of smaller, lower cost bulk capacitors, reduces power line loading and stress on the switching FETs and results in a power supply that fully complies with IEC1000-2-3 specification. The ML4824 includes circuits for the implementation of a leading edge, average current, boost type power factor correction and a trailing edge and pulse width modulator (PWM). The device is available in two versions of ML4824-1 (fPWM=fPFC) and ML4824-2 (fPWM=2 x fPFC). Doubling the switching frequency of the PWM allows the user to design with smaller output components while maintaining the best operating frequency for the PFC. An over-voltage comparator shuts down the PFC section in the event of a sudden decrease in load. The PFC section also includes peak current limiting and input voltage brown-out protection.
Internally synchronized PFC and PWM in one IC
Low total harmonic distortion
Reduces ripple current in the storage capacitor between the PFC and PWM sections
Average current, continuous boost leading edge PFC
Fast trans conductance error amp for voltage loop
High efficiency trailing edge PWM can be configured for current mode or voltage mode operation
Average line voltage compensation with brownout control
PFC overvoltage comparator eliminates output runaway due to load removal
Current fed gain modulator for improved noise immunity
Overvoltage protection, UVLO and soft start
