MM3Z12VB - ON Semiconductor

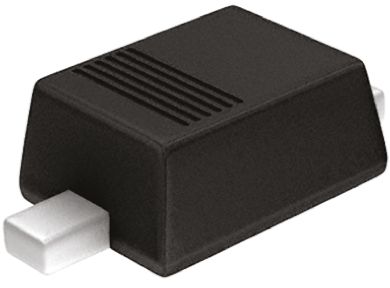

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MM3Z12VB
Manufacturer

ON Semiconductor
ChipWorker Part#

CW41706400
Category

Zener Diode, Zener
Package

SOD-323
Description

Diode Zener Single 12V 2% 200mW 2-Pin SOD-323F T/R
Documentation

Datasheet

MM3Z12VB Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MM3Z12VB Specifications

Attribute	Attribute Value

Part Number	MM3Z12VB
Manufacturer	ON Semiconductor
ChipWorker Part#	CW41706400
Category	Zener Diode, Zener
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323
Capacitance Tolerance	±2 %
Number of Positions	2 Position
Forward Voltage	1V @10mA
Power Dissipation	200 mW
Test Current	5 mA
Zener Voltage	12 V
Input Power (Max)	200 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	200 mW
	expand all
Size-Length	1.3 mm
Size-Width	1.7 mm
Size-Height	1 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The MM3Z12VB is a Zener Diode suitable for general usage and many different applications.
VZ tolerance selection of ±2% (B Series)
Very small and thin SMD package
Matte tin (Sn) finish, Pb-free
