MPC506AP - TI

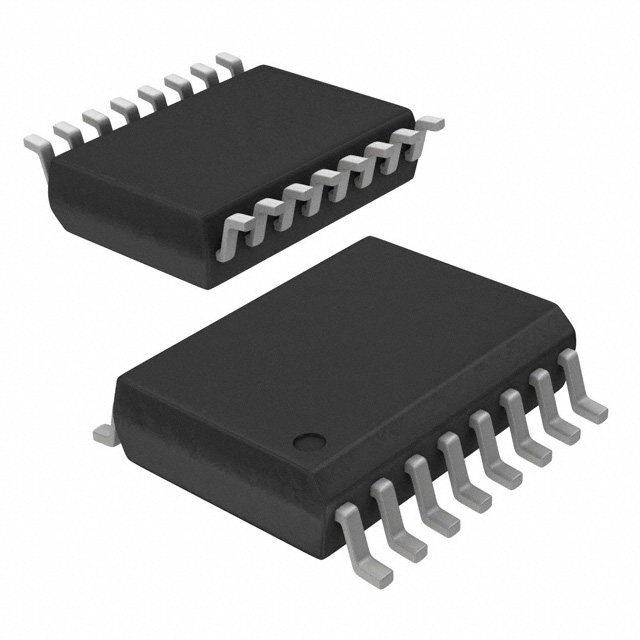

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MPC506AP
Manufacturer

TI
ChipWorker Part#

CW52797192
Category

Analog Switch Ic, Analog Switch Multiplexer
Package

PDIP-28
Description

TEXAS INSTRUMENTS MPC506AP.. Analog Multiplexer, 16:1, 1 Circuit, 1.3KΩ, 700µA, ± 5V to 22V, DIP-28
Documentation

Datasheet

MPC506AP Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MPC506AP Specifications

Attribute	Attribute Value

Part Number	MPC506AP
Manufacturer	TI
ChipWorker Part#	CW52797192
Category	Analog Switch Ic, Analog Switch Multiplexer
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	28 Pin
Case/Package	PDIP-28
Supply Voltage (DC)	5.00V (min)
Number of Outputs	1 Output
Supply Current	1.5 mA
Number of Circuits	1 Circuit
Number of Channels	16 Channel
Number of Positions	28 Position
Power Dissipation	2 W
Number of Inputs	16 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2 W
Supply Voltage	5.22 VDC
	expand all
Size-Length	37.4 mm
Size-Width	13.53 mm
Size-Height	4.07 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The MPC506AP is a 16-channel single-ended Analog Multiplexer. The multiplexer has input overvoltage protection. Analog input voltages may exceed either power supply voltage without damaging the device or disturbing the signal path of other channels. The protection circuitry assures that signal fidelity is maintained even under fault conditions that would destroy other multiplexers. Analog inputs can withstand 70VPP signal levels and standard ESD tests. Signal sources are protected from short circuits should multiplexer power loss occur, each input presents a 1kR resistance under this condition. Digital inputs can also sustain continuous faults up to 4V greater than either supply voltage. The device is fabricated with BurrBrown"s dielectrically isolated CMOS technology.
70Vp-p Analog overvoltage protection
No channel interaction during overvoltage
Break-before-make switching
±15V Analog signal range
7.5mW (typical) Standby power
True second source
