Part NoMPG306D
-
ManufacturerTE Connectivity
-
ChipWorker Part#CW53476238
-
CategoryPushbutton Switch, Switch Push button
-

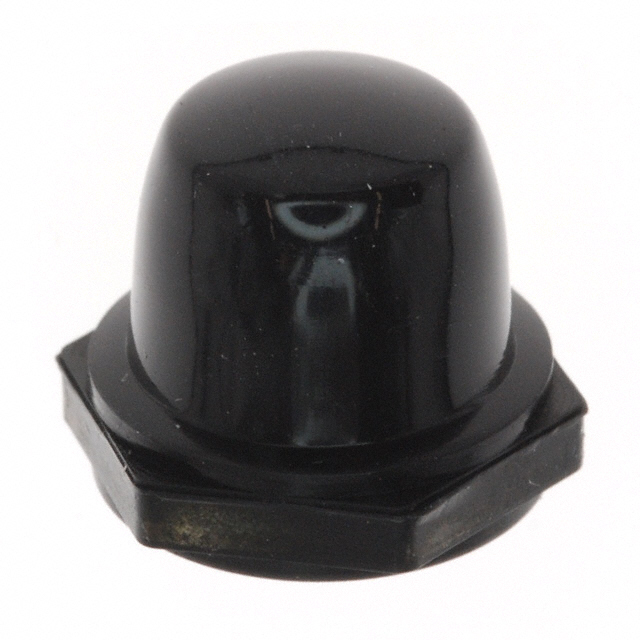

DescriptionSwitch Push Button ON OFF 3PDT Round Button 6A 250VAC Wire Lug Panel Mount Bulk
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
MPG306D Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
MPG306D Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | MPG306D |
| Manufacturer | TE Connectivity |
| ChipWorker Part# | CW53476238 |
| Category | Pushbutton Switch, Switch Push button |
| Documentation | Datasheet |
| Mounting Style | Panel |
| Contact Plating | Silver, Gold Flash |
| Actuator Type | Button |
| Orientation | Vertical |
| Contacts Type | 3PDT |
| Contact Current Rating | 6.00 A |
| Current Rating (Max) | 6A @125VAC |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating (AC Max) | 250 V |
| Maximum Contact Resistance (Max) | 10 mΩ |
| expand all | |
| Size-Length | 17.81 mm |
| Size-Width | 13 mm |
| Size-Height | 34.1 mm |
| Contact Material | Copper |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | Yes |
| REACH SVHC Compliance Edition | 2015/06/15 |
| HTS Code | 8536509065 |
| ECCN Code | EAR99 |
Product Description
- The MPG series green Pushbutton Switch with break-before-make contact timing. The life expectancy depending on function (momentary or push on push off) and number of poles from 40,000 up to 80,000 cycles at full load this is accomplished due to silver slugs in the contact area. In addition to the silver slugs all contact surfaces are gold flashed this inhibits oxidation and also offers a very low initial contact resistance. The design also includes over-moulded terminals which eliminate any voids which is possible with epoxy sealed terminals.
- Contact configuration SPDT, DPDT, 3PDT, 4PDT
- Wire lug, PC terminals, right angle and vertical right angle offered
- Very robust actuator
- Entire series with over-moulded terminals
- Actuator guards, decorative hardware and silicone boot seals available
