MPSA06 ,BJT Transistor, BJT - Fairchild

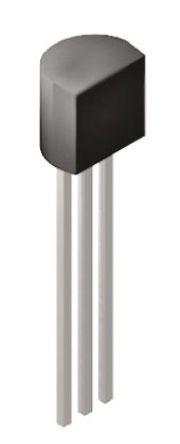

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

97 points

Part No

MPSA06
Manufacturer

Fairchild
ChipWorker Part#

CW36922929
Category

BJT Transistor, BJT
Package

TO-92-3
Description

Trans GP BJT NPN 80V 0.5A 625mW 3Pin TO-92 Bag
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 0.07

Buy MPSA06

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

MPSA06 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

MPSA06 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	MPSA06
Manufacturer	Fairchild
ChipWorker Part#	CW36922929
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Frequency	100 MHz
Voltage Rating (DC)	80.0 V
Current Rating	500 mA
Number of Positions	3 Position
Polarity	N-Channel, NPN
Power Dissipation	625 mW
Gain Bandwidth Product	100 MHz
Breakdown Voltage (Collector to Emitter)	80 V
hFE Min	100 @100mA, 1V
Input Power (Max)	625 mW
DC Current Gain (hFE)	100
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	625 mW
	expand all
Size-Length	5.2 mm
Size-Width	4.19 mm
Size-Height	5.33 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The MPSA06 is a 80V NPN General-purpose Transistor designed for amplifier applications at collector current up to 300mA. This product is general usage and suitable for many different applications.
