STTH1602CT ,Diode Array, TVS Diode Array - ST Microelectronics

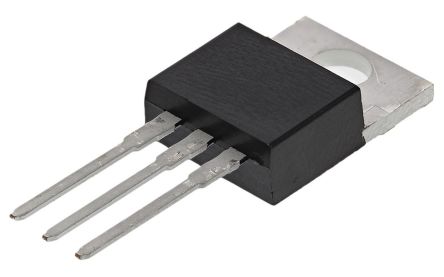

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

167 points

Part No

STTH1602CT
Manufacturer

ST Microelectronics
ChipWorker Part#

CW7177481
Category

Diode Array, TVS Diode Array
Package

TO-220-3
Description

Fast / Ultrafast Diode, 200V, 8A, Dual Common Cathode, 1.1V, 21ns, 80A
Documentation

Datasheet
Ships from

Moscow
Наличие

385 pcs In Stock
Estimated Price

$ 0.32

Buy STTH1602CT

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

STTH1602CT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

STTH1602CT Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	STTH1602CT
Manufacturer	ST Microelectronics
ChipWorker Part#	CW7177481
Category	Diode Array, TVS Diode Array
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	200 V
Current Rating	16.0 A
Forward Voltage	1.1V @8A
Thermal Resistance	3 ℃/W
Reverse recovery time	26 ns
Forward Current	8 A
Max Forward Surge Current (Ifsm)	80 A
Maximum Forward Voltage (Max)	1.1 V
Forward Current (Max)	20 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
Junction Temperature (Max)	175 ℃
	expand all
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.15 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
HK STC License	NLR

Similar & Replacement Parts

Similar products

Product Description

The STTH1602CT is a high-frequency dual centre-tap Ultra-fast Diode suited for switch mode power supplies and high frequency DC to DC converters. It is intended for use in low voltage, high frequency inverters, free-wheeling and polarity protection applications.
Low losses
Low forward and reverse recovery times
Low leakage current
High junction temperature
