MPSA92G - ON Semiconductor

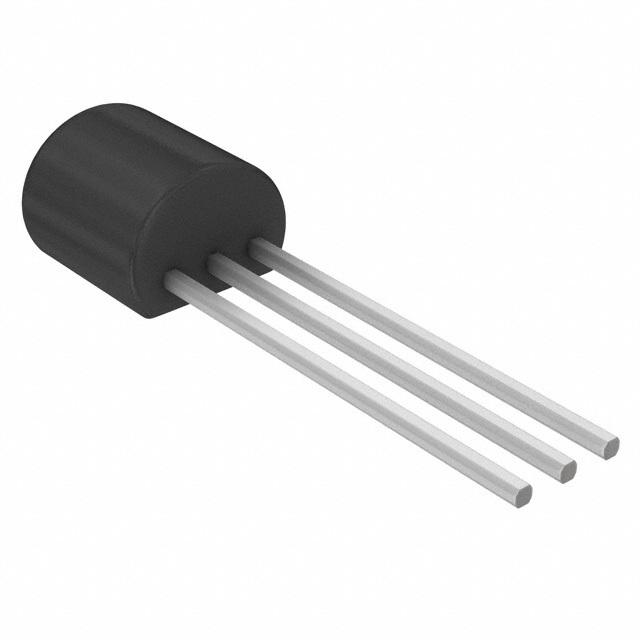

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MPSA92G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW61325171
Category

BJT Transistor, BJT
Package

TO-92-3
Description

TO-92 PNP 300V 0.5A
Documentation

Datasheet

MPSA92G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MPSA92G Specifications

Attribute	Attribute Value

Part Number	MPSA92G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW61325171
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Frequency	50 MHz
Voltage Rating (DC)	-300 V
Current Rating	-500 mA
Power Rating	625 mW
Number of Positions	3 Position
Polarity	PNP, P-Channel
Power Dissipation	625 mW
Breakdown Voltage (Collector to Emitter)	300 V
Thermal Resistance	83.3℃/W (RθJC)
Continuous Collector Current	0.5A
hFE Min	25
Input Power (Max)	625 mW
DC Current Gain (hFE)	50
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	625 mW
	expand all
Size-Length	5.2 mm
Size-Width	4.19 mm
Size-Height	5.33 mm
Material	Silicon
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2018/01/15
ECCN Code	EAR99

Product Description

The MPSA92G is a PNP small signal Bipolar Transistor designed for general purpose amplifier applications.
