MSP430F5438IPZ - TI

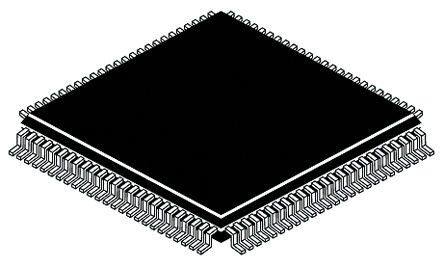

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MSP430F5438IPZ
Manufacturer

TI
ChipWorker Part#

CW8360404
Category

Microcontroller, MCU IC
Package

LQFP-100
Description

16Bit Ultra-Low-Power Microcontroller, 256KB Flash, 16KB RAM, 12Bit ADC, 4 USCIs, 32Bit HW Multi 100-LQFP -40℃ to 85℃
Documentation

Datasheet

MSP430F5438IPZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MSP430F5438IPZ Specifications

Attribute	Attribute Value

Part Number	MSP430F5438IPZ
Manufacturer	TI
ChipWorker Part#	CW8360404
Category	Microcontroller, MCU IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	LQFP-100
Frequency	18 MHz
Supply Voltage (DC)	2.20V (min)
Operating Voltage	1.8VDC ~ 3.6VDC
Number of Positions	100 Position
Clock Speed	18 MHz
RAM Memory Size	16 KB
Number of Bits	16 Bit
FLASH Memory Size	256 KB
Number of ADCs	1 ADC
Number of Inputs and Outputs	87 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.2V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.2 V
	expand all
Size-Length	14.2 mm
Size-Width	14.2 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17

Product Description

The MSP430F5438IPZ is a 16-bit ultra-low-power Mixed signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1µs. The device configurations with three 16-bit timer, up to four universal serial communication interfaces (USCIs), 12-bit A/D converter, three-channel internal DMA, a 32-bit hardware multiplier and 87 general-purpose I/O pins. This device operates at a maximum frequency of 18MHz.
16-bit RISC architecture, extended memory, up to 18MHz system clock
Fully integrated LDO with programmable regulated core supply voltage
Supply voltage supervision, monitoring and brownout
FLL Control loop for frequency stabilization
Low-power low-frequency internal clock source (VLO)
Low-frequency trimmed internal reference source (REFO)
32kHz Crystals (XT1)
High-frequency crystals up to 32MHz
16-bit Timer TA0, Timer_A with five Capture/Compare registers
16-bit Timer TA1, Timer_A with three Capture/Compare registers
16-bit Timer TB0, Timer_B with seven Capture/Compare shadow registers
Enhanced UART supports auto-baudrate detection
IrDA Encoder and decoder
Synchronous SPI
12-bit ADC with internal shared reference, sample-and-hold and autoscan feature
Serial on-board programming
No external programming voltage needed
Basic timer with RTC
312µA/MHz Active mode (AM) power consumption
