Part No

MTD3055VL
Manufacturer

ON Semiconductor
ChipWorker Part#

CW21340040
Category

MOSFET, MOSFET Transistor
Package

TO-252-3
Description

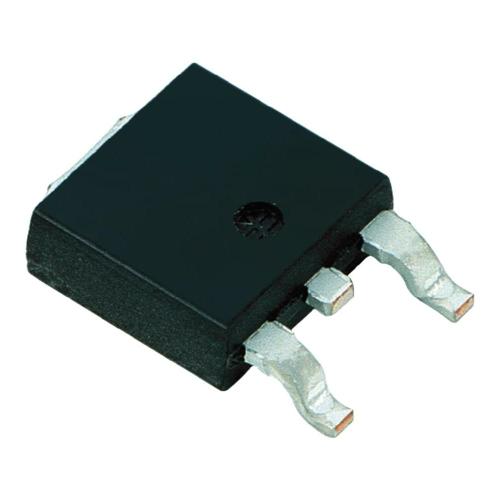

Trans MOSFET N-CH 60V 12A 3Pin(2+Tab) DPAK
Documentation

Datasheet
Ships from

Moscow
Наличие

13920 pcs In Stock
Estimated Price

$ 1.32

Buy MTD3055VL

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

MTD3055VL Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

MTD3055VL Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	MTD3055VL
Manufacturer	ON Semiconductor
ChipWorker Part#	CW21340040
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Voltage Rating (DC)	60.0 V
Current Rating	12.0 A
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.18 Ω
Polarity	N-Channel
Power Dissipation	3.9 W
Threshold Voltage	1.5 V
Input Capacitance	570 pF
Gate Charge	10.0 nC
Drain to Source Voltage (Vds)	60 V
Breakdown Voltage (Drain to Source)	60.0 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	12.0 A
Input Capacitance (Ciss)	570pF @25V(Vds)
Input Power (Max)	1.5 W
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	48 W
	expand all
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.39 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

Product Description

12 AMPERES 60 VOLTS RDS(on)= 180 mΩ
This Power MOSFET is designed to withstand high energy in the avalanche and commutation modes. Designed for low voltage, high speed switching applications in power supplies, converters and power motor controls, these devices are particularly well suited for bridge circuits where diode speed and commutating safe operating areas are critical and offer additional safety margin against unexpected voltage transients.
• Avalanche Energy Specified
• IDSS and VDS(on) Specified at Elevated Temperature
