MUR3060PTG - ON Semiconductor
The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoMUR3060PTG
-
ManufacturerON Semiconductor
-
ChipWorker Part#CW77265479
-
CategoryDiode Array, TVS Diode Array
-
PackageTO-218-3
-

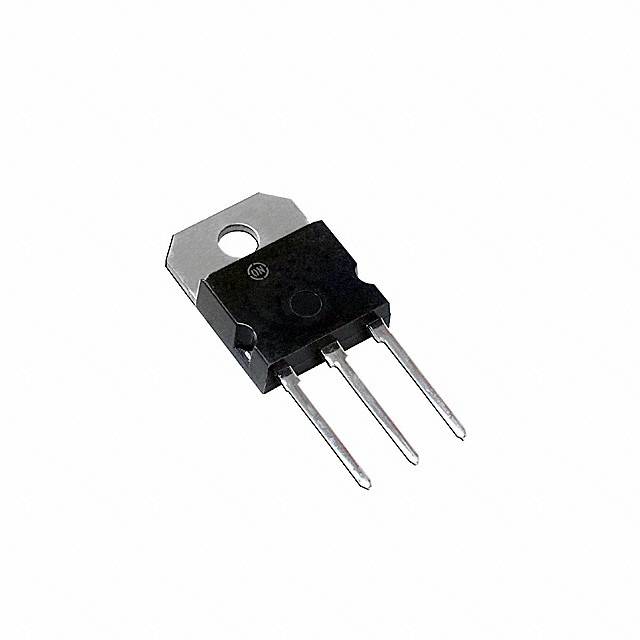

DescriptionON SEMICONDUCTOR MUR3060PTG Fast / Ultrafast Power Diode, 600V, 30A, Dual Common Cathode, 1.5V, 60ns, 150A
-
DocumentationDatasheet
