NC7SZ66L6X - Fairchild

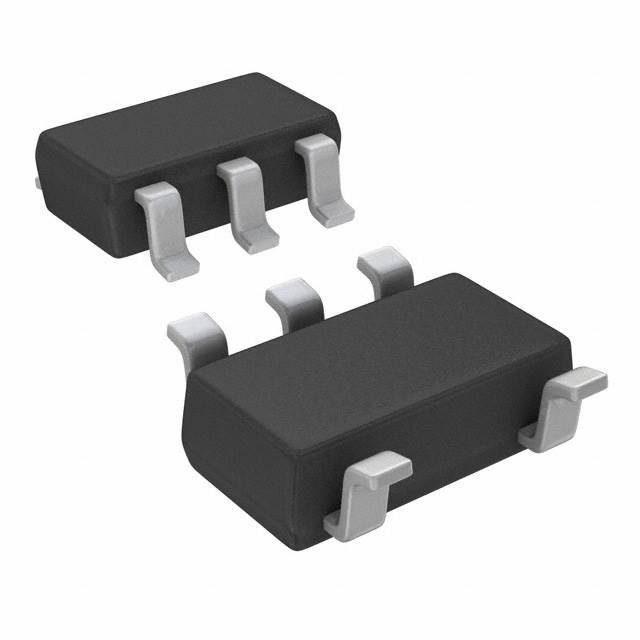

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NC7SZ66L6X
Manufacturer

Fairchild
ChipWorker Part#

CW56217967
Category

Logic Controller, Logic IC
Package

UFDFN-6
Description

SPST, 1 Func, 1Channel, CMOS, PDSO6, 1 X 1MM, MO-252UAAD, MICROPAK-6
Documentation

Datasheet

NC7SZ66L6X Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NC7SZ66L6X Specifications

Attribute	Attribute Value

Part Number	NC7SZ66L6X
Manufacturer	Fairchild
ChipWorker Part#	CW56217967
Category	Logic Controller, Logic IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	UFDFN-6
Number of Outputs	1 Output
Contacts Type	SPST
Number of Channels	1 Channel
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.65V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.65 V
	expand all
Size-Length	1.45 mm
Size-Width	1 mm
Size-Height	0.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

**Description**
The NC7SZ66 is a ultra high-speed (UHS) CMOS compatible single-pole/single-throw (SPST) bus switch.
The LOW on resistance of the switch allows inputs to be connected to out-puts with minimal propagation
delay and without generating additional ground bounce noise. The device is organized as a 1- bit switch with a switch enable (OE) signal. When OE is HIGH, the switch is on and port A is connected to port B. When OE is LOW, the switch is open and a high-impedance state exists between the two ports..
**Fatures**
Broad VCC Operating Range: 1.65V to 5.5V
Rail-to-Rail Signal Handling
Power Down High-Impedance Inputs/Outputs
5Ω Switch Connection between Two Ports
Minimal Propagation Delay through the Switch
Low ICC
Zero Bounce in Flow-Through Mode
Control Input Compatible with CMOS Input Levels
Ultra-Small MicroPak™ Packages
Space-Saving SOT23 and SC70 Packages
