NCP1013AP065G ,PWM Controller IC - ON Semiconductor

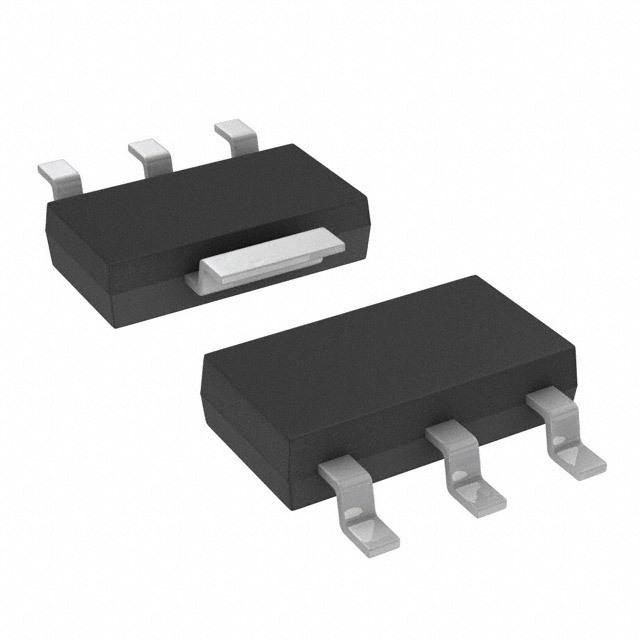

The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
119 points
-
Part NoNCP1013AP065G
-
ManufacturerON Semiconductor
-
ChipWorker Part#CW49622714
-
CategoryPWM Controller IC
-
PackagePDIP-7
-
DescriptionCurrent Mode PWM Controller 71kHz 7Pin PDIP Tube
-
DocumentationDatasheet
-
Ships fromMoscow
-
Наличие224498 pcs In Stock
-
Estimated Price$ 0.13
Payment Methods and Delivery
{{ estimate }}
Buy NCP1013AP065G
Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.
Real stock check
Best price from distributors
Engineer support
NCP1013AP065G Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}xx
{{ low_stock_text }}
|
1 |
{{weeks_text}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
{{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
|
Chipworker
|
{{noList.partNo}}
{{noList.mfr}}
|
{{stockAvailability}}
{{ search_item }}
|
{{moq}} | 1 | 6 - 8 {{delivery_date}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
|||||||
{{ apiText }}{{ apiTime }}(UTC+8)
Update Data
Chipworker Certification
11+ years sourcing experience
1000+ russia customers
ISO certified supplier
Support small MOQ
*Photos of Our Actual 800 m² Warehouse
NCP1013AP065G Specifications
Consulting Engineer >>| Attribute | Attribute Value | |
|---|---|---|
| Part Number | NCP1013AP065G | |
| Manufacturer | ON Semiconductor | |
| ChipWorker Part# | CW49622714 | |
| Category | PWM Controller IC | |
| Documentation | Datasheet | |
| Mounting Style | Through Hole | |
| Number of Pins | 7 Pin | |
| Case/Package | PDIP-7 | |
| Power Rating | 19 W | |
| Halogen Free Status | Halogen Free | |
| Breakdown Voltage | 700 V | |
| Switching Frequency | 71 kHz | |
| Duty Cycle | 67 % | |
| Maximum Duty Cycle | 72 % | |
| Operating Temperature (Max) | 150 ℃ | |
| Input Voltage | 8.5V ~ 10V | |
| expand all | ||
| Size-Height | 3.44 mm | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) | |
| Product Lifecycle Status | Active | |
| Packaging | Tube | |
| RoHS | RoHS Compliant | |
| Lead-Free Status | Lead Free | |
| ECCN Code | EAR99 |
Similar & Replacement Parts
Similar products
Product Description
- The NCP101X series integrates a fixed−frequency current−mode controller and a 700 V MOSFET. Housed in a PDIP−7 or SOT−223 package, the NCP101X offers everything needed to build a rugged and low−cost power supply, including soft−start, frequency jittering, short−circuit protection, skip−cycle, a maximum peak current setpoint and a Dynamic Self−Supply (no need for an auxiliary winding).
- Unlike other monolithic solutions, the NCP101X is quiet by nature: during nominal load operation, the part switches at one of the available frequencies (65 − 100 − 130 kHz). When the current setpoint falls below a given value, e.g. the output power demand diminishes, the IC automatically enters the so−called skip−cycle mode and provides excellent efficiency at light loads. Because this occurs at typically 1/4 of the maximum peak value, no acoustic noise takes place. As a result, standby power is reduced to the minimum without acoustic noise generation.
- Features
- • Built−in 700 V MOSFET with Typical RDSon of 11 Ω and 22 Ω
- • Large Creepage Distance Between High−Voltage Pins
- • Current−Mode Fixed Frequency Operation: 65 kHz – 100 kHz − 130 kHz
- • Skip−Cycle Operation at Low Peak Currents Only: No Acoustic Noise!
- • Dynamic Self−Supply, No Need for an Auxiliary Winding
- • Internal 1.0 ms Soft−Start
- • Latched Overvoltage Protection with Auxiliary Winding Operation
- • Frequency Jittering for Better EMI Signature
- • Auto−Recovery Internal Output Short−Circuit Protection
- • Below 100 mW Standby Power if Auxiliary Winding is Used
- • Internal Temperature Shutdown
- • Direct Optocoupler Connection
- • SPICE Models Available for TRANsient Analysis
- • These are Pb−Free and Halide−Free Devices
- Typical Applications
- • Low Power AC/DC Adapters for Chargers
- • Auxiliary Power Supplies (USB, Appliances,TVs, etc.)
