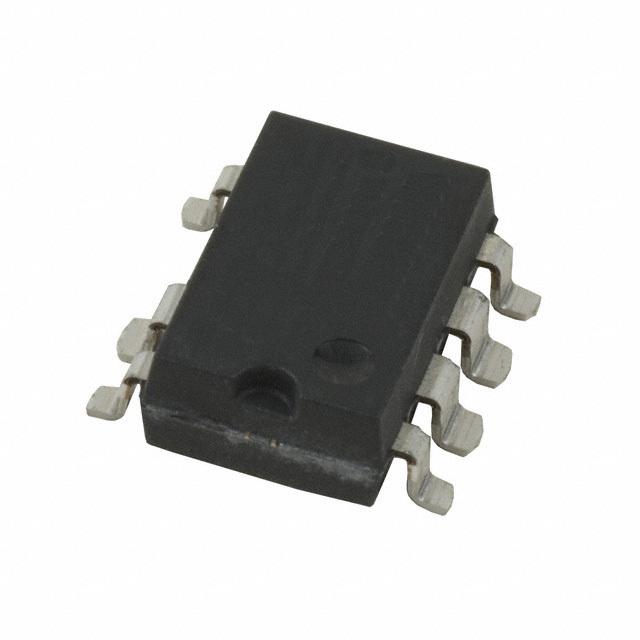

NCP1014AP065 ,AC to DC Converter, AC/DC Power Module - ON Semiconductor

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

60 points

Part No

NCP1014AP065
Manufacturer

ON Semiconductor
ChipWorker Part#

CW172296129
Category

AC to DC Converter, AC/DC Power Module
Package

DIP-8
Description

Current Mode PWM Controller 450mA 7Pin PDIP Rail
Documentation

Datasheet
Ships from

Moscow
Наличие

3326 pcs In Stock
Estimated Price

Price on Request

Buy NCP1014AP065

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

NCP1014AP065 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

NCP1014AP065 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	NCP1014AP065
Manufacturer	ON Semiconductor
ChipWorker Part#	CW172296129
Category	AC to DC Converter, AC/DC Power Module
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	7 Pin
Case/Package	DIP-8
Power Rating	19 W
Breakdown Voltage	700 V
Switching Frequency	65 kHz
Duty Cycle	67 %
	expand all
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
HK STC License	NLR

Similar & Replacement Parts

Similar products

Product Description

The NCP101X series integrates a fixed−frequency current−mode controller and a 700 V MOSFET. Housed in a PDIP−7, PDIP−7 Gull Wing, or SOT−223 package, the NCP101X offers everything needed to build a rugged and low−cost power supply, including soft−start, frequency jittering, short−circuit protection, skip−cycle, a maximum peak current setpoint and a Dynamic Self−Supply (no need for an auxiliary winding).
Unlike other monolithic solutions, the NCP101X is quiet by nature: during nominal load operation, the part switches at one of the available frequencies (65 − 100 − 130 kHz). When the current setpoint falls below a given value, e.g. the output power demand diminishes, the IC automatically enters the so−called skip−cycle mode and provides excellent efficiency at light loads. Because this occurs at typically 1/4 of the maximum peak value, no acoustic noise takes place. As a result, standby power is reduced to the minimum without acoustic noise generation.
Features
• Built−in 700 V MOSFET with Typical RDSon of 11 Ω and 22 Ω
• Large Creepage Distance Between High−Voltage Pins
• Current−Mode Fixed Frequency Operation: 65 kHz – 100 kHz − 130 kHz
• Skip−Cycle Operation at Low Peak Currents Only: No Acoustic Noise!
• Dynamic Self−Supply, No Need for an Auxiliary Winding
• Internal 1.0 ms Soft−Start
• Latched Overvoltage Protection with Auxiliary Winding Operation
• Frequency Jittering for Better EMI Signature
• Auto−Recovery Internal Output Short−Circuit Protection
• Below 100 mW Standby Power if Auxiliary Winding is Used
• Internal Temperature Shutdown
• Direct Optocoupler Connection
• SPICE Models Available for TRANsient Analysis
• Pb−Free Packages are Available
Typical Applications
• Low Power AC/DC Adapters for Chargers
• Auxiliary Power Supplies (USB, Appliances, TVs, etc.)
