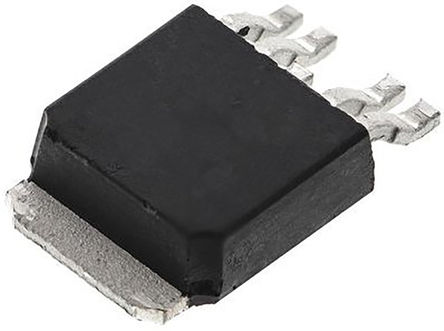

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NCV5501DT33G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW61704163
Category

Voltage Regulator
Package

TO-252-3
Description

NCV5501DT33G, LDO Voltage Regulator, 500mA, 3.3V 2.9%, 4 to 16Vin, 3Pin DPAK
Documentation

Datasheet

NCV5501DT33G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NCV5501DT33G Specifications

Attribute	Attribute Value

Part Number	NCV5501DT33G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW61704163
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	500 mA
voltage rating	0.23V @500mA,0.005V @1mA
Input Voltage (Max)	16 V
Input Voltage (Min)	2.5 V
Output Current (Max)	500 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2.9 %
Input Voltage	≤16 V
	expand all
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.38 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Use the LDO NCV5501DT33G linear regulator from ON Semiconductor to maintain a constant output voltage. It has an overall accuracy of ±2.9 %. Its typical dropout voltage at current is 0.005@1mA|0.23@500mA V. This voltage regulation device"s single output can produce a current up to 0.5 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.5 V that does not exceed 16 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 0.35%(Typ) and line regulation of 0.1%(Typ). This product comes in rail packaging to keep individual parts separated and protected. The maximum dropout voltage is 0.09@1mA|0.7@500mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
