NP2X-B ,Audio Connector - Neutrik
The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
79 points
-
Part NoNP2X-B
-
ManufacturerNeutrik
-
ChipWorker Part#CW13212696
-
CategoryAudio Connector
-
PackageMetal
-
DescriptionConn 1/4" Phone Plug PL 2POS Solder ST Cable Mount 2 Terminal 1Port
-
DocumentationDatasheet
-
Ships fromMoscow
-
Наличие210 pcs In Stock
-
Estimated Price$ 4.55
Payment Methods and Delivery
{{ estimate }}
Buy NP2X-B
Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.
Real stock check
Best price from distributors
Engineer support
NP2X-B Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}xx
{{ low_stock_text }}
|
1 |
{{weeks_text}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
{{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
|
Chipworker
|
{{noList.partNo}}
{{noList.mfr}}
|
{{stockAvailability}}
{{ search_item }}
|
{{moq}} | 1 | 6 - 8 {{delivery_date}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
|||||||
{{ apiText }}{{ apiTime }}(UTC+8)
Update Data
Chipworker Certification
11+ years sourcing experience
1000+ russia customers
ISO certified supplier
Support small MOQ
*Photos of Our Actual 800 m² Warehouse
NP2X-B Specifications
Consulting Engineer >>| Attribute | Attribute Value | |
|---|---|---|
| Part Number | NP2X-B | |
| Manufacturer | Neutrik | |
| ChipWorker Part# | CW13212696 | |
| Category | Audio Connector | |
| Documentation | Datasheet | |
| Mounting Style | Solder | |
| Case/Package | Metal | |
| Number of Contacts | 2 Contact | |
| Gender | Male | |
| Wire Gauge | 18.0 AWG | |
| Contact Plating | Gold | |
| Current Rating | 15 A | |
| Insulation Resistance | 2.0 GΩ | |
| Orientation | Straight | |
| Number of Mating Cycles | 1000 Cycle | |
| Current Rating (Max) | 15 A | |
| Operating Temperature (Max) | 65 ℃ | |
| Operating Temperature (Min) | -20 ℃ | |
| Voltage Rating | 50 V | |
| expand all | ||
| Size-Length | 92.964 mm | |
| Size-Diameter | 14.5 mm | |
| Cable Length | 92.0 mm | |
| Housing Color | Black | |
| Color | Black | |
| Contact Material | Brass | |
| Operating Temperature | -20℃ ~ 65℃ | |
| Product Lifecycle Status | Active | |
| RoHS | RoHS Compliant | |
| Lead-Free Status | Lead Free | |
| REACH SVHC Compliance | No SVHC | |
| REACH SVHC Compliance Edition | 2015/12/17 | |
| HTS Code | 8536694020 | |
| ECCN Code | EAR99 |
Similar & Replacement Parts

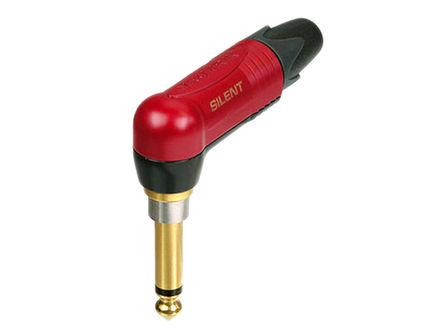

Similar products
Product Description
- The NP2X-B from Neutrik is a 2 pole 1/4" professional phone plug. This heavy duty professional phone plug has proven unique chuck type strain relief for reliable cable retention. The slimline shell with a width of 14.5mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. All metal housing design of this connector eliminates plastic cover of predecessor NPRCS and improves further durability and EMI protection. This phone plug is used in audio cables, snakes, speakers, amplifiers, mixing desks and guitar applications.
- Extra slim 1/4" plug for highest packing density
- Robust die-cast shell in stylish design
- Sleek design for best handling convenience
- Rated voltage is less than 50V
- Cable outer diameter range from 4mm to 7mm
- Wire size is 18AWG (1mm²) and greater than 1000 mating cycles
- Gold plated brass solder contacts, polyacetal + PU bushing and polyamide insert material
- Zinc die-cast shell with black chromium plating
- IEC 60603-11/EIA RS-453 compliant
- Temperature range from -20°C to 65°C
