NRS5040T2R2NMGJV - Taiyo Yuden

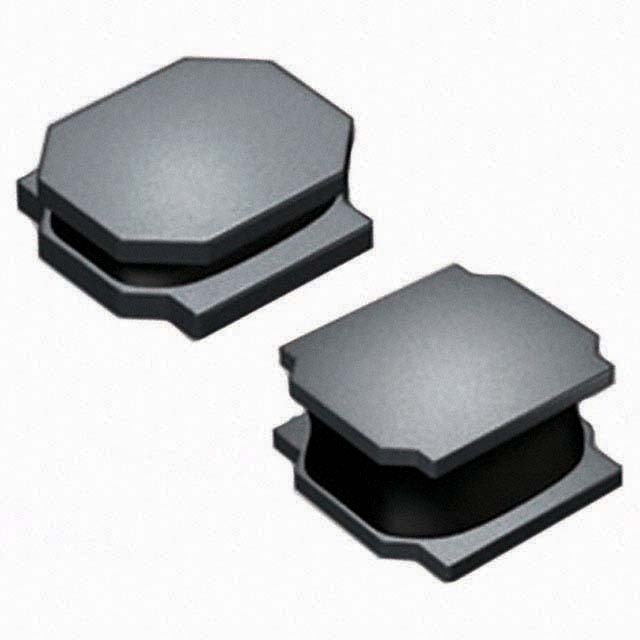

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NRS5040T2R2NMGJV
Manufacturer

Taiyo Yuden
ChipWorker Part#

CW48857100
Category

Inductor
Package

5040
Description

5040 2.2uH ±30%
Documentation

Datasheet

NRS5040T2R2NMGJV Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NRS5040T2R2NMGJV Specifications

Attribute	Attribute Value

Part Number	NRS5040T2R2NMGJV
Manufacturer	Taiyo Yuden
ChipWorker Part#	CW48857100
Category	Inductor
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	5040
Current Rating	3.7 A
Capacitance Tolerance	±30 %
Halogen Free Status	Halogen Free
Inductance	2.2 µH
Self Resonant Frequency	42 MHz
Part Family	NR
Inductance Tolerance	±30 %
Test Frequency	100 kHz
DC Resistance (DCR)	0.0286 Ω
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	25 ℃
Resistance (DC Max)	22 mΩ
	expand all
Size-Length	4.9 mm
Size-Width	4.9 mm
Size-Height	4.1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	1500
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

2.2µH Shielded Wirewound Inductor 3.7A 28.6mOhm Max Nonstandard
