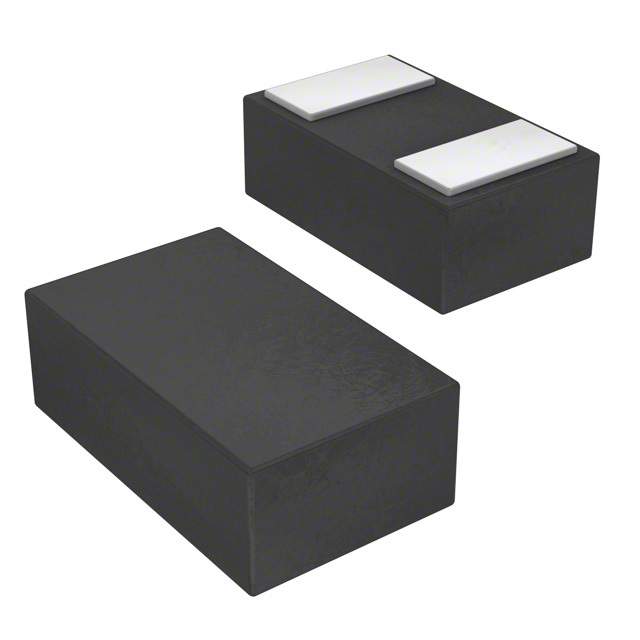

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NSR01L30MXT5G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW68485246
Category

Schottky Diode
RoHS

Lead free / RoHS Compliant
Description

Schottky Diodes & Rectifiers 30V LOW IR SCHOTTKY DIODE
Documentation

Datasheet

NSR01L30MXT5G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NSR01L30MXT5G Specifications

Attribute	Attribute Value

Part Number	NSR01L30MXT5G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW68485246
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DFN-2
Number of Positions	2 Position
Forward Voltage	460mV @10mA
Power Dissipation	180 mW
Forward Current	100 mA
Max Forward Surge Current (Ifsm)	2 A
Maximum Forward Voltage (Max)	460 mV
Forward Current (Max)	100 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
Junction Temperature	150℃ (Max)
Power Dissipation (Max)	180 mW
	expand all
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HK STC License	NLR

Product Description

Diode Schottky 30V 100mA (DC) Surface Mount 2-X3DFN (0.62x0.32)
