NTS4173PT1G - ON Semiconductor

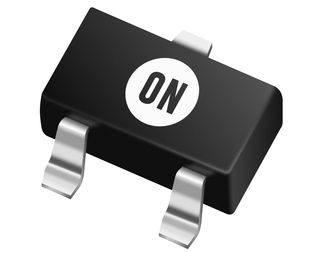

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NTS4173PT1G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW28944277
Category

MOSFET, MOSFET Transistor
Package

SC-70-3
Description

SC-70P-CH 30V 1.2A
Documentation

Datasheet

NTS4173PT1G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NTS4173PT1G Specifications

Attribute	Attribute Value

Part Number	NTS4173PT1G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW28944277
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-70-3
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.09 Ω
Polarity	P-Channel
Power Dissipation	290 mW
Threshold Voltage	0.7 V
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	1.30 A, -1.20 A
Input Capacitance (Ciss)	430pF @15V(Vds)
Input Power (Max)	290 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	350 mW
	expand all
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	0.9 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

P-Channel 30V 1.2A (Ta) 290mW (Ta) Surface Mount SC-70-3 (SOT323)
