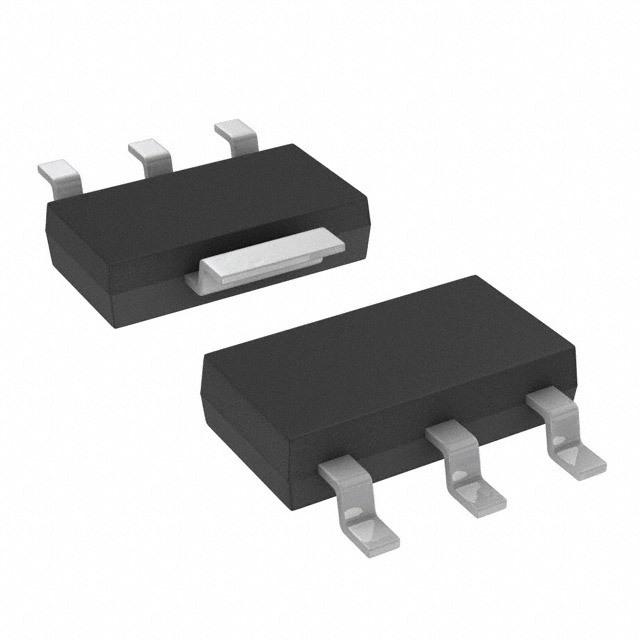

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NX1117CE33Z
Manufacturer

NXP
ChipWorker Part#

CW73786963
Category

Voltage Regulator
Package

SOT-223
Description

LDO Regulator Pos 3.3V 1A 4Pin(3+Tab) SC-73
Documentation

Datasheet

NX1117CE33Z Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NX1117CE33Z Specifications

Attribute	Attribute Value

Part Number	NX1117CE33Z
Manufacturer	NXP
ChipWorker Part#	CW73786963
Category	Voltage Regulator
Documentation	Datasheet
Number of Pins	3 Pin
Case/Package	SOT-223
Output Voltage	3.3 V
Output Current	1 A
voltage rating	1.07 V
Input Voltage (Max)	20 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

**General description**
The NX1117C/NX1117CE are two series of low-dropout positive voltage regulators with an
output current capability of 1 A. The two series consist of 18 fixed output voltage versions and two adjustable output voltage versions. NX1117C series offers an output voltage accuracy of 1 % and NX1117CE series of 1.25 %.
The regulators feature output current limiting, Safe Operating Area (SOA) control, and thermal shutdown.
The NX1117C/NX1117CE series are housed in a medium power SOT223 (SC-73) Surface-Mounted Device (SMD) plastic package.
**Features and benefits**
Maximum output current of 1 A
Wide operation range to 20 V input
Output voltage accuracy of1 % or 1.25 %
Output current limiting
SOA control
Thermal shutdown
No minimum load requirements for fixed output voltage versions
Temperature range -40oC to 125oC
**Applications**
Post regulator for switching DC-to-DC converter
High-efficiency linear regulators
Battery charger
USB devices
Hard drive controllers
Consumer and industrial equipment point of load
