NZT45H8 - Fairchild

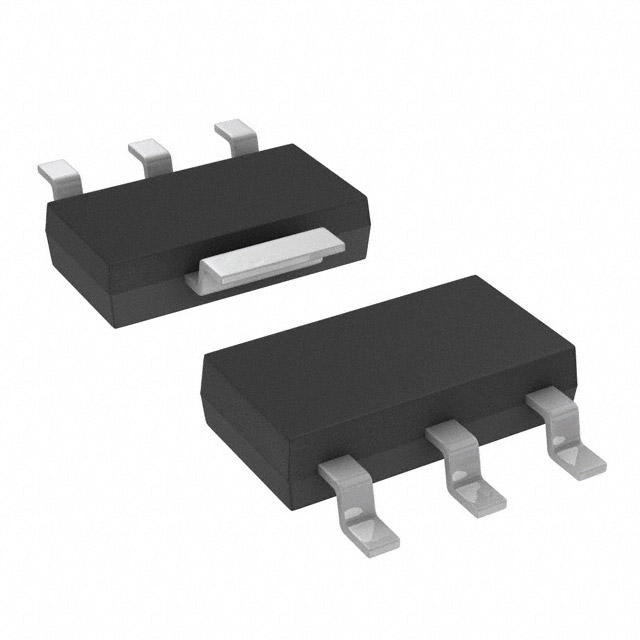

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NZT45H8
Manufacturer

Fairchild
ChipWorker Part#

CW97413700
Category

BJT Transistor, BJT
Package

TO-261-4
Description

Power Bipolar Transistor, 8A I(C), 60V V(BR)CEO, 1Element, PNP, Silicon, Plastic/Epoxy, 4Pin, SOT-223, 4Pin
Documentation

Datasheet

NZT45H8 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NZT45H8 Specifications

Attribute	Attribute Value

Part Number	NZT45H8
Manufacturer	Fairchild
ChipWorker Part#	CW97413700
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Frequency	40 MHz
Voltage Rating (DC)	-60.0 V
Current Rating	-8.00 A
Number of Positions	4 Position
Polarity	PNP, P-Channel
Power Dissipation	1.5 W
Gain Bandwidth Product	40 MHz
Breakdown Voltage (Collector to Emitter)	60 V
Continuous Collector Current	8A
hFE Min	40 @4A, 1V
Input Power (Max)	1.5 W
DC Current Gain (hFE)	60
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
	expand all
Size-Length	6.5 mm
Size-Width	3.56 mm
Size-Height	1.6 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
