OF102JE - Ohmite

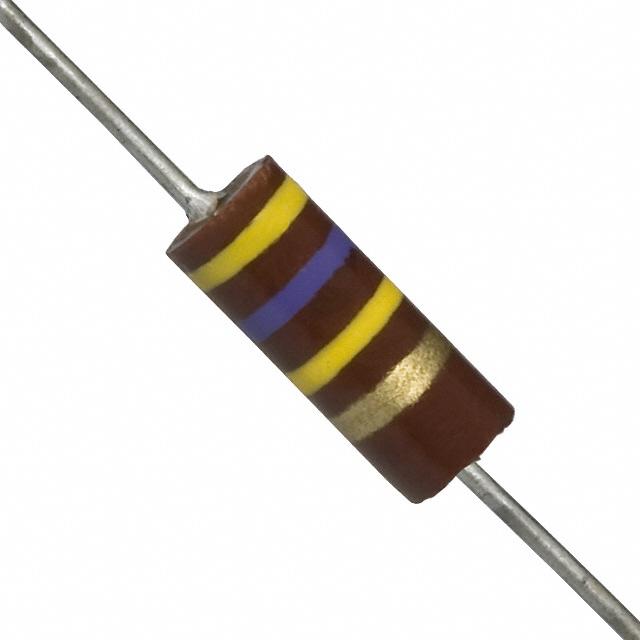

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

OF102JE
Manufacturer

Ohmite
ChipWorker Part#

CW30075496
Category

Through-Hole Resistor
Description

OHMITE OF102JE Through Hole Resistor, Little Demon®, 1KΩ, 350V, Axial Leaded, 0.5W(1/2W), ± 5%, OF Series
Documentation

Datasheet

OF102JE Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

OF102JE Specifications

Attribute	Attribute Value

Part Number	OF102JE
Manufacturer	Ohmite
ChipWorker Part#	CW30075496
Category	Through-Hole Resistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Voltage Rating (DC)	350 V
Capacitance Tolerance	±5 %
Power Rating	500 mW
Resistance	1 kΩ
Resistance Tolerance	±5 %
Voltage Rating	350 V
	expand all
Size-Length	10.3 mm
Size-Diameter	3.80 mm
Lead Length	1.35 in
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
Mil-Spec	Yes
HTS Code	8533100060
ECCN Code	EAR99

Product Description

The OF102JE is a Carbon Composition Resistor manufactured by extruding a blend of carbon and organic binders inside a phenolic outer body with solder-coated copper terminal. The extrusion is cut to length, leads inserted, cured and marked to form a finished resistor. This fixed resistor is made tough by a molding process that combines the terminals, insulation and resistive element into an integrated unit. Along with their small size, Little Demons® perform with low noise, dissipate heat rapidly and offer high temperature stability. This resistor is able to withstand larger short-term pulses and higher voltages than film resistors. It is sensitive to moisture and therefore, storage recommendations should be adhered to. The resistor is highly hygroscopic and changes in resistance value can occur if too much moisture is absorbed. For this reason, alcohol or hydrocarbon solvents are recommended for rinsing.
Molded insulation for high dielectric strength
Rugged construction
High surge capabilities
700VAC Dielectric withstanding voltage
The solderability may be affected due to oxidization of lead wire, the resistance value of some units may not completely recover to original value.
